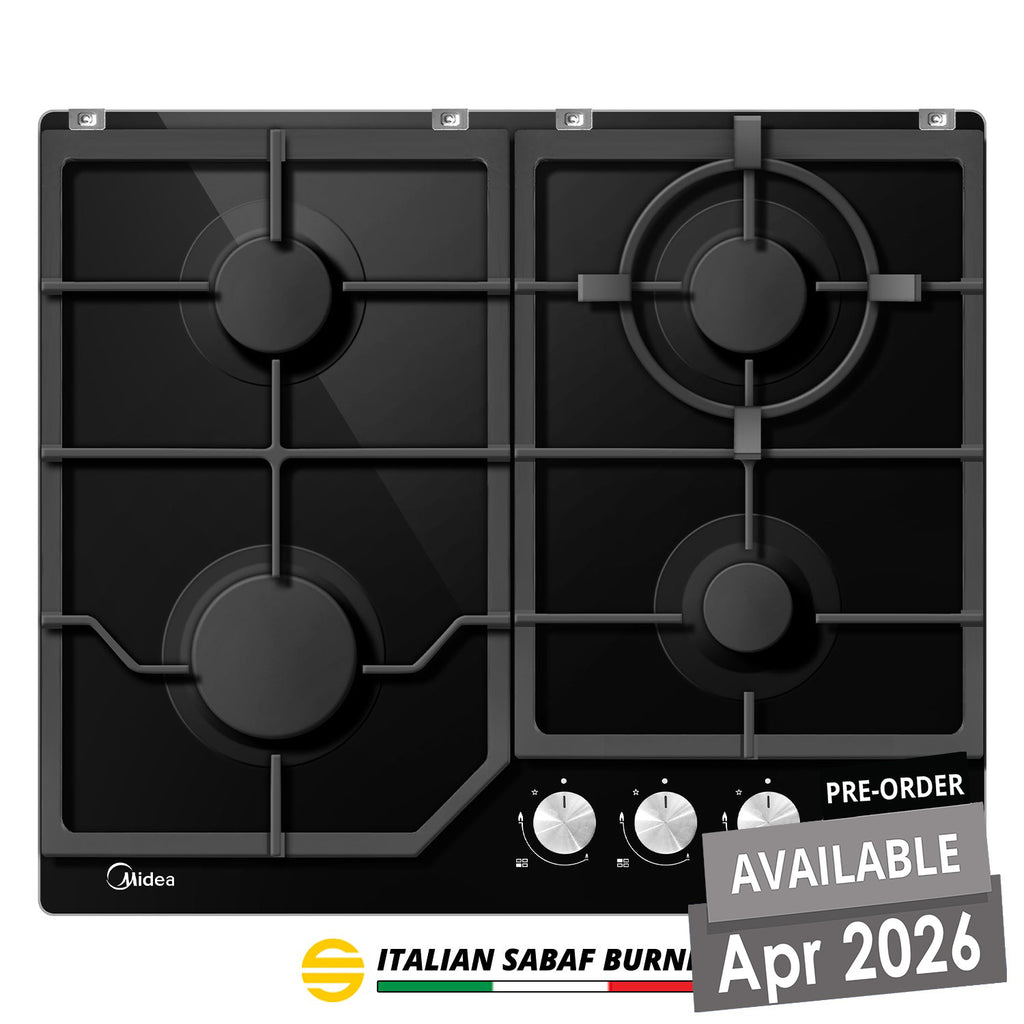

Midea – Built-in Gas Hob

4 Burners

Brand: Midea

Model: 60GJ084

Color: Black

Power Supply: 220-240V, 50-60Hz, 2W

Type of Gas: LPG G30 29mbar

Rated Thermal Flow:

• Rapid burner: 3.0kW (219g/h)
• Semi-rapid burner 1: 1.75kW (127g/h)
• Semi-rapid burner 2: 1.75kW (127g/h)
• Auxiliary-rapid burner: 1.0kW (73g/h)

Gas Connection: G1/2 Thread

Type of Ignition: Electric Cord

Cooktop Material: Tempered Glass

Warranty: 12 Months Warranty

Features:

• • Gas Connection: G1/2 Thread for secure attachment to gas supply.
  • LPG Compatibility: Specifically designed for use with LPG gas systems.
  • Tempered Glass Cooktop: Durable and easy-to-clean surface that enhances the overall look and performance.
  • Automatic Ignition: Features an electric cord ignition system for easy start-up and continuous ignition for consistent flame operation
  • Sabaf Burners: Equipped with Sabaf burners, an Italian brand renowned for its high quality, long-lasting performance, and efficient heat output.
  • Flame Failure Safety Device: Each burner is equipped with a flame failure safety device, which is designed to stop the flow of gas to the burner head in the event of the flame going out.

Installation Cut-out Size: 560 x 480mm (22” x 18.9”)

Dimensions & Weights:

Width x Depth x Height

Product Dimension:

• Millimeter (mm): 600 x 510 x 55mm (height up to the surface, excluding knobs & cast supports)
• Inch (”): 23.6” x 20.1” x 2.2”
• Feet (’) Inch (”): 2’ x 1’8” x 0’2”

Packing Dimension: 648 x 559 x 162mm (25.5” x 22” x 6.4”)

Net Weight: 13.29kg

Gross Weight: 15.04kg

Packing Contents:

• Built-in Gas Hob – x1

• Bracket – x4
• Screw – x4
• Sponge Strips – x4
• Auxiliary Cast Iron pan support – x1
• User Manual – x1

Click here for User Manual
