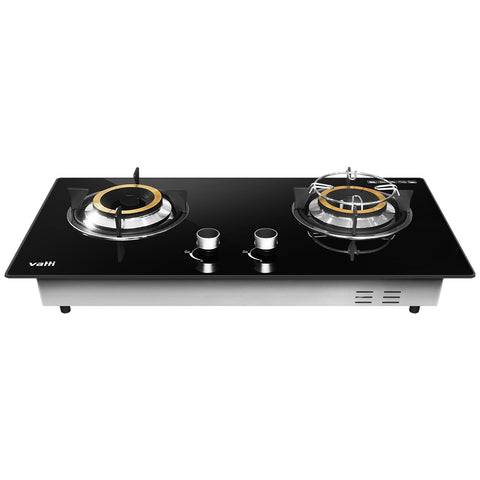

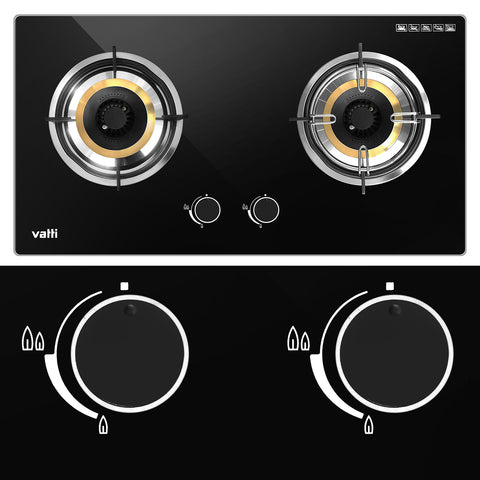

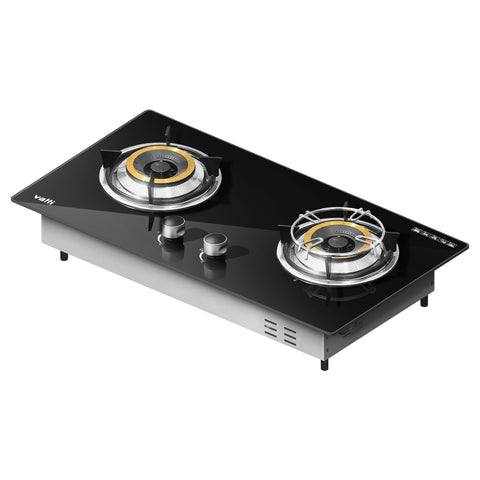

Vatti – Built-in Gas Hob

Double Burners

Brand: Vatti

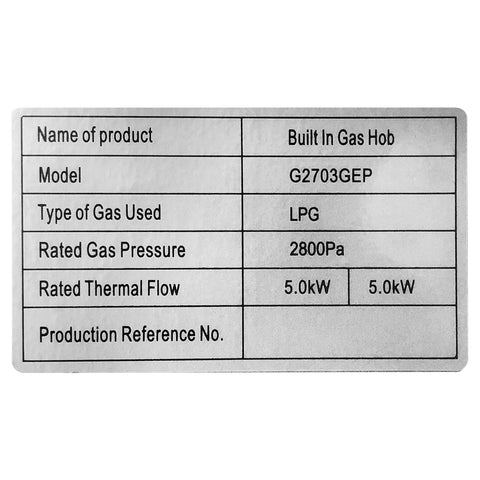

Model: G2703GEP

Gas Type: LPG

Gas Pressure: 2800Pa

Rated Thermal Flow:

• • Burner 1: 5.0kW
  • Burner 2: 5.0kW

Type of Ignition: Pulse Ignition

Electric Supply: 1x D Battery 1.5V (included)

Cooktop Material: Tempered Glass top

Features:

• • LPG Compatibility: Specifically designed for use with LPG gas systems.
  • Pulse Ignition System: Reliable and easy ignition powered by 1x D 1.5V battery.

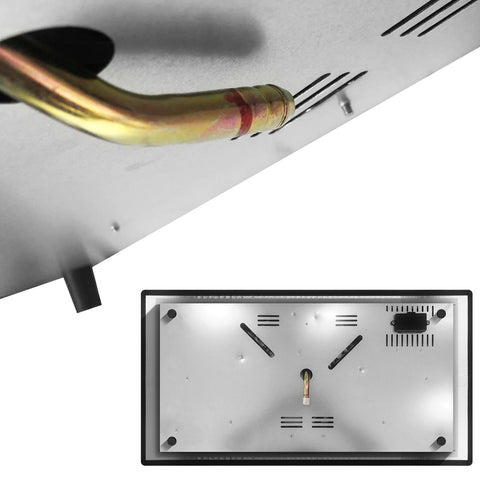

  • Gas Pipe Compatibility: Gas pipe Ø9.5mm inner diameter suitable for connection.
  • Durable Tempered Glass Surface: Provides a sleek, modern look and is easy to clean.

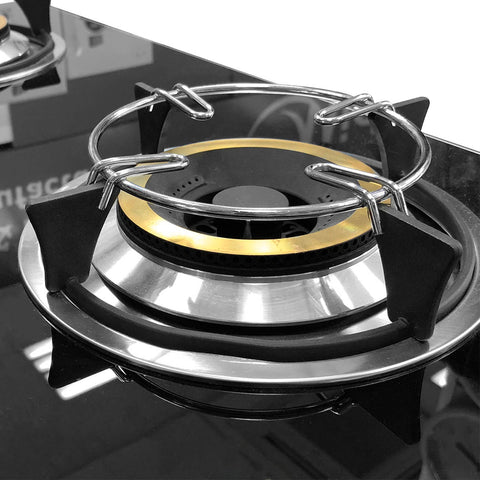

  • Heavy Cast Iron Pan Support: Durable and heat-resistant, providing a stable base for cookware.

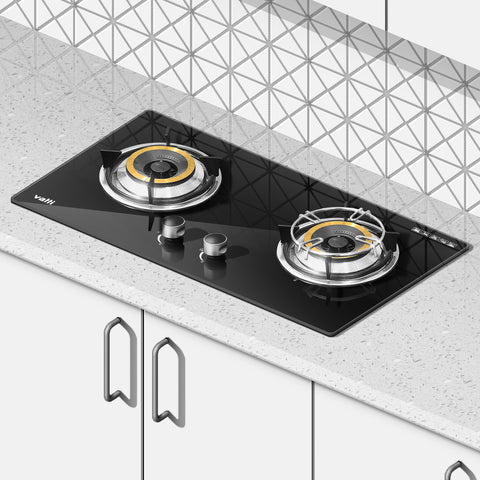

  • Space-Saving Design: Built-in design with a compact size, perfect for kitchens with limited space.

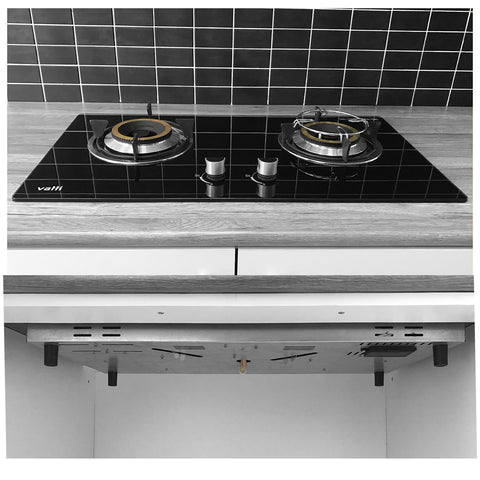

  • The gas hob can be used built-in or free-standing on the counter, offering versatile installation options.
  • Dual High-Performance Burners: Two 5.0kW burners offer powerful heat output for fast and efficient cooking.
  •

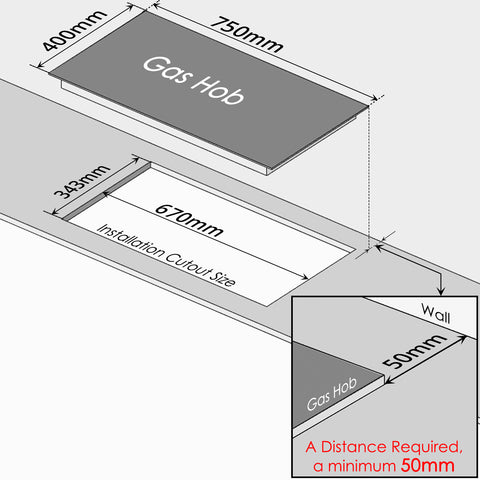

Installation Cut-out Size: 670 x 343mm (26.4” x 13.5”)

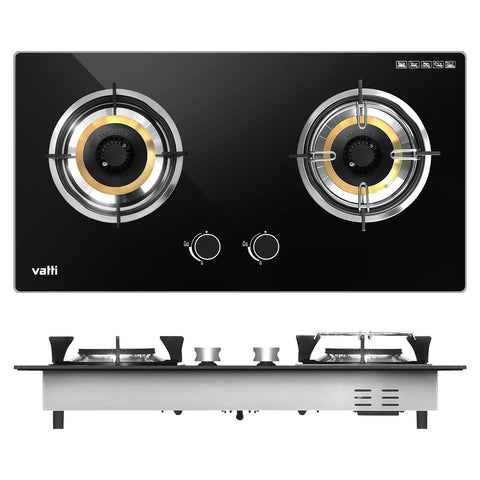

Dimensions & Weights:

Width x Depth x Height

Dimension of Product:

• Millimeter (mm): 750 x 400 x 105mm (height up to the surface, excluding knobs & cast supports)
• Inch (”): 29.5” x 15.7” x 4”
• Feet (’) Inch (”): 2’6” x 1’4” x 0’4”

Packing Dimension: 805 x 455 x 200mm (31.7” x 17.9” x 7.9”)

Net Weight: 10.2kg

Gross Weight: 11.8kg

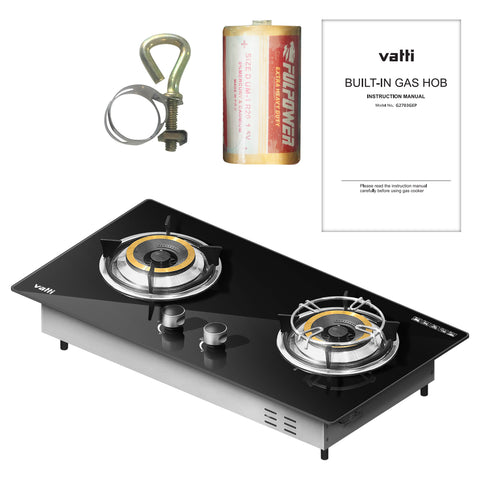

Packing Contents:

Built-in Gas Hob – x1

Heavy Duty Size-D Battery (UN-1 R20 1.5V) – x1

Gas Hob Clamp – x1

User Manual – x1

Click here for User Manual
