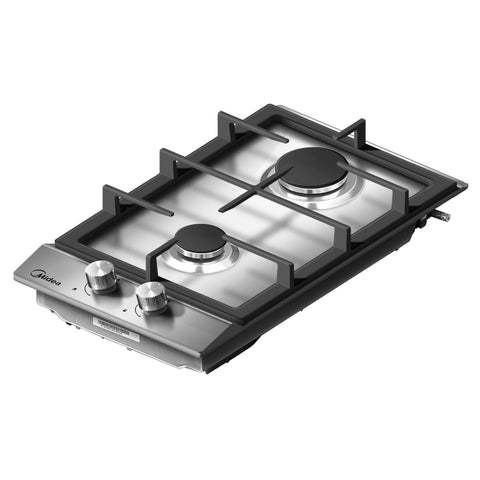

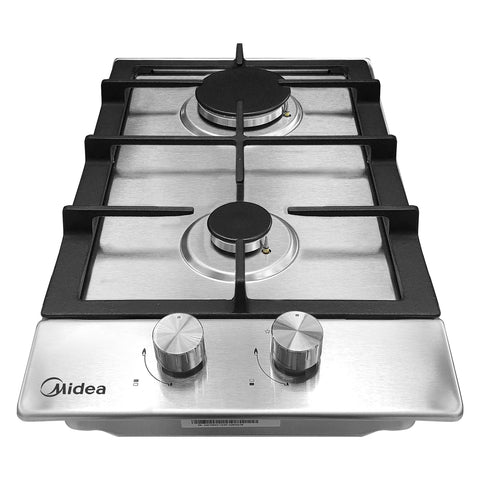

Midea – Built-in Gas Hob

Double Burners

Brand: Midea

Model: 30G20MA005-SFN

Color: Silver

Power Supply: 220-240V, 50-60Hz, 2W

Type of Gas: LPG (G30) 28-30mbar

Rated Thermal Flow:

• Rapid burner: 3.0kW (218g/h)
• Auxiliary-rapid burner: 1.0kW (73g/h)

Gas Connection: G1/2 Thread

Type of Ignition: Electrical Cord

Cooktop Material: Stainless Steel

Warranty: 12 Months Warranty

Features:

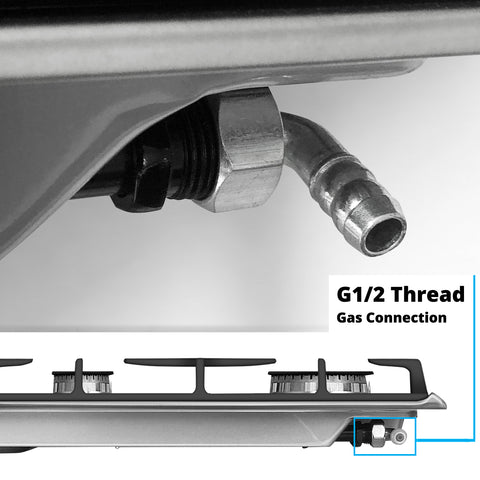

• • Gas Connection: G1/2 Thread for secure attachment to gas supply.
  • LPG Compatibility: Specifically designed for use with LPG gas systems.
  • Stainless Steel Cooktop: Durable and easy-to-clean surface that enhances the overall look and performance.

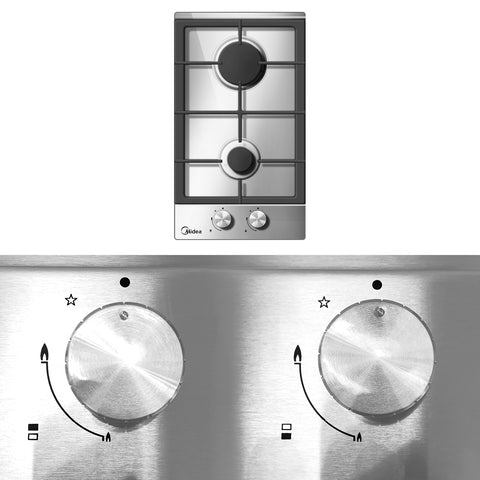

  • Automatic Ignition: Features an electric cord ignition system for easy start-up and continuous ignition for consistent flame operation

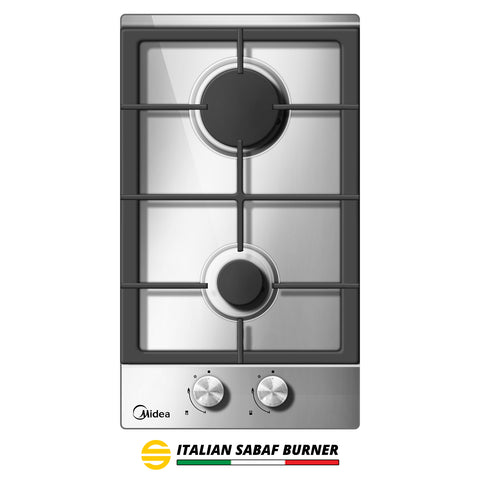

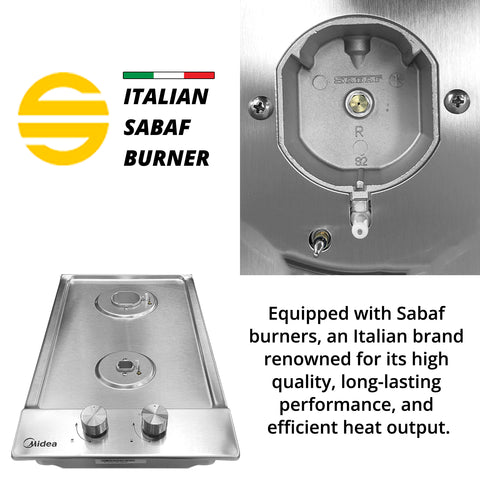

  • Sabaf Burners: Equipped with Sabaf burners, an Italian brand renowned for its high quality, long-lasting performance, and efficient heat output.

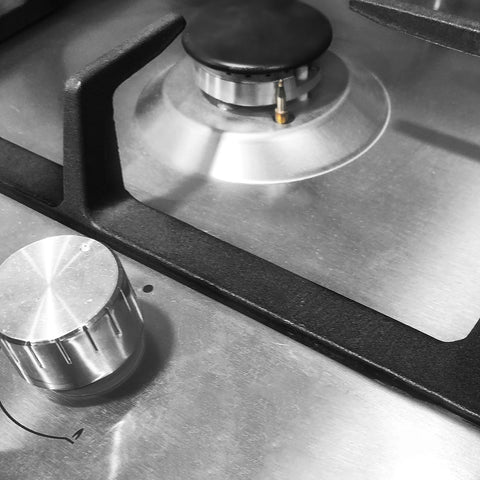

  • Flame Failure Safety Device: Each burner is equipped with a flame failure safety device, which is designed to stop the flow of gas to the burner head in the event of the flame going out.

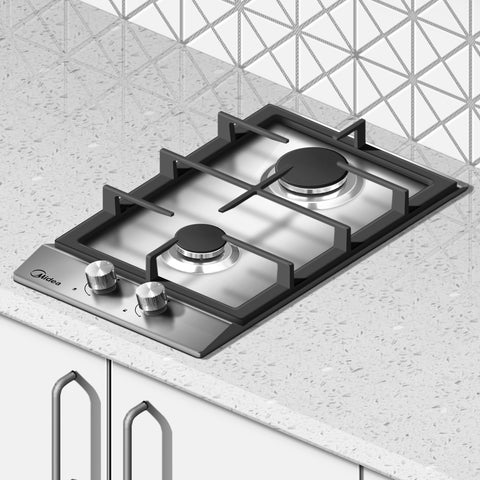

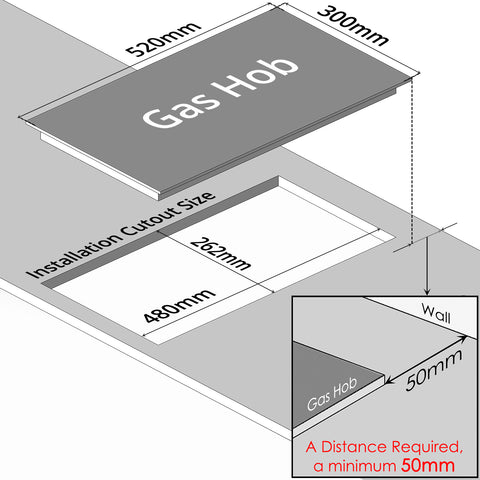

Installation Cut-out Size: 262 x 480mm (10.3” x 18.9”)

Dimensions & Weights:

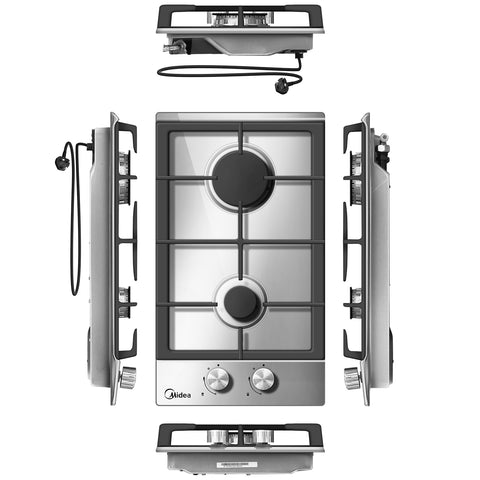

Width x Depth x Height

Product Dimension:

• Millimeter (mm): 300 x 520 x 55mm
• Inch (”): 11.8” x 20.5” x 2.2”
• Feet (’) Inch (”): 1’ x 1’8” x 0’2”

Package Dimension: 575 x 355 x 165mm (22.6” x 14” x 6.5”)

Net Weight: 5.27 kg

Gross Weight: 6.30 kg

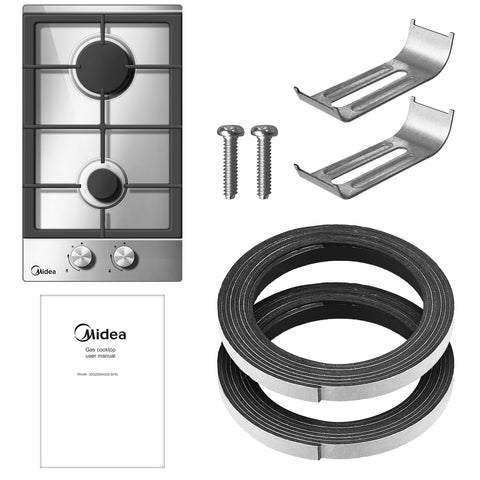

Packing Contents:

Built-in Gas Stove – x1

Bracket – x2

Screw – x2

Sponge Strip – x2

User Manual – x1

Click here for User Manual
