Specification

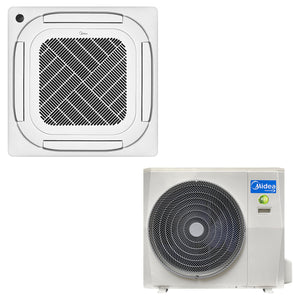

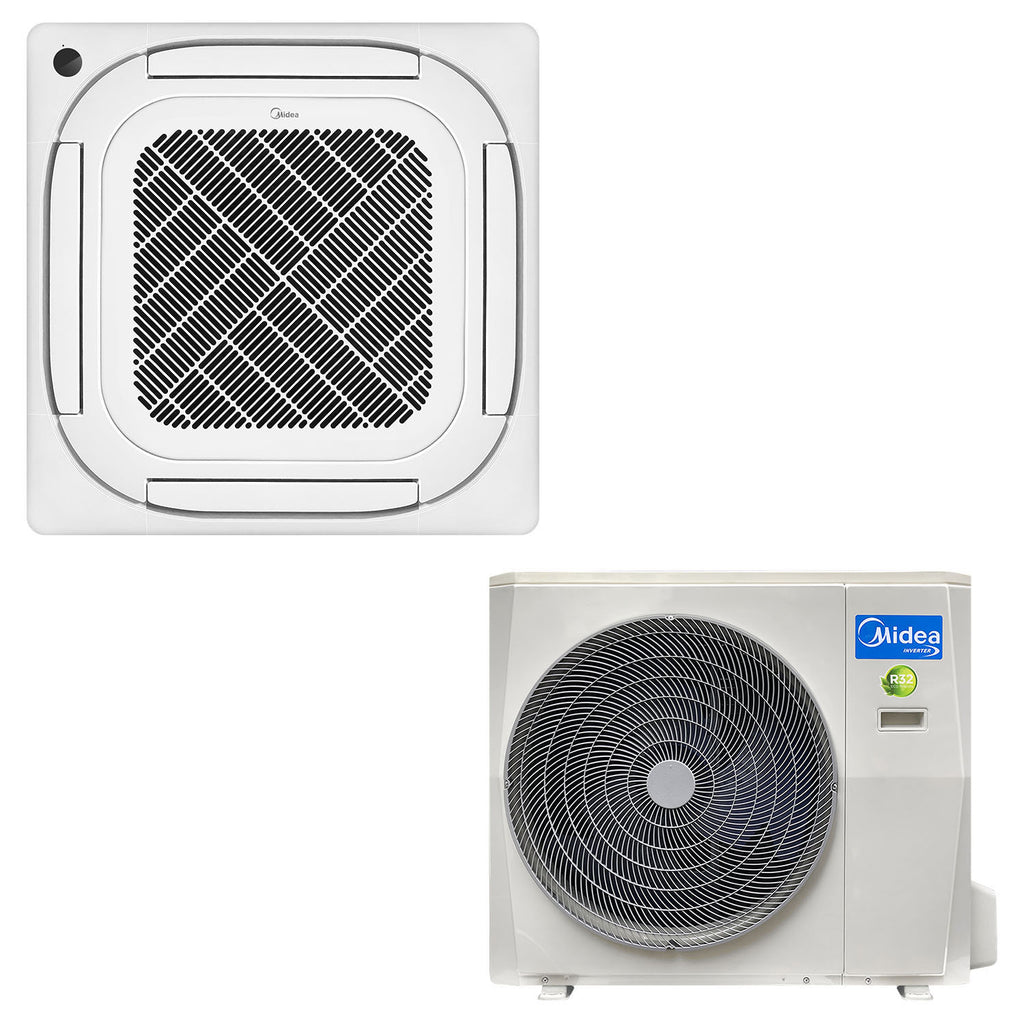

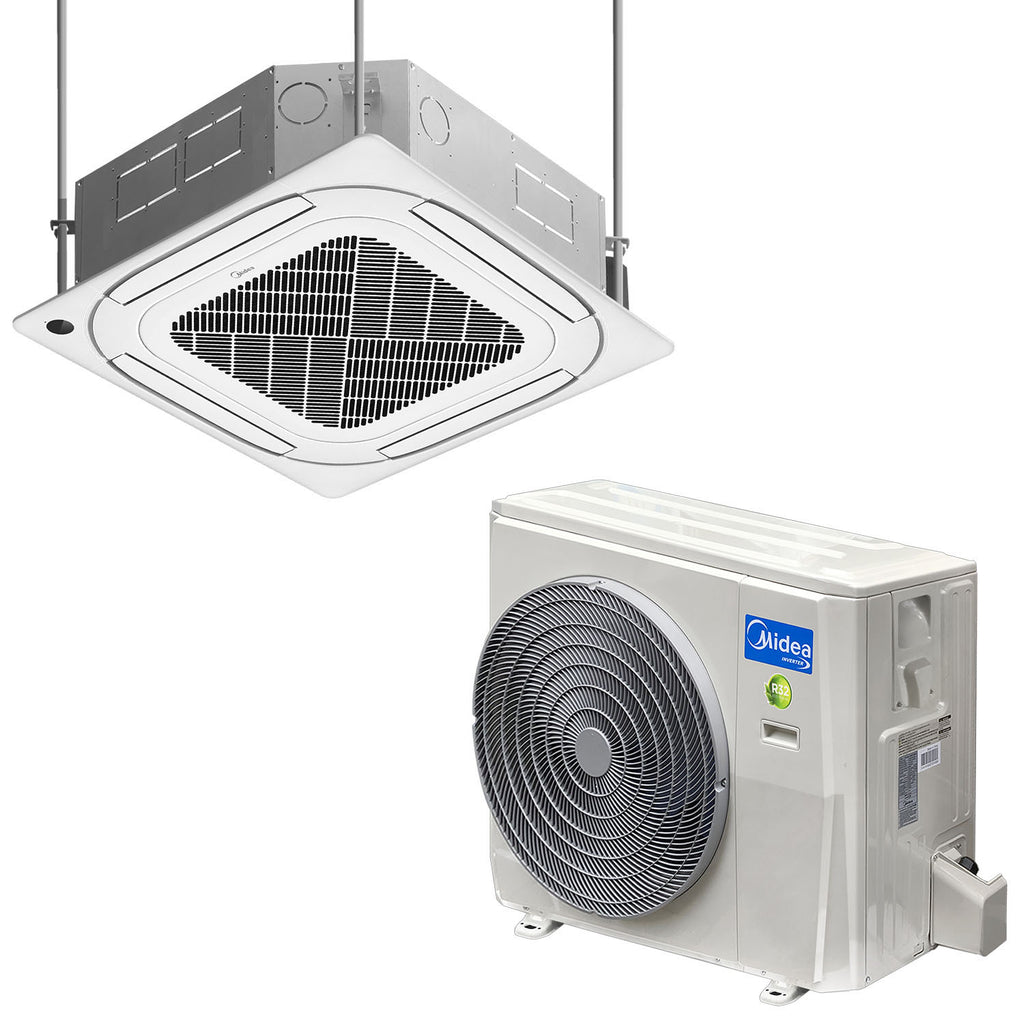

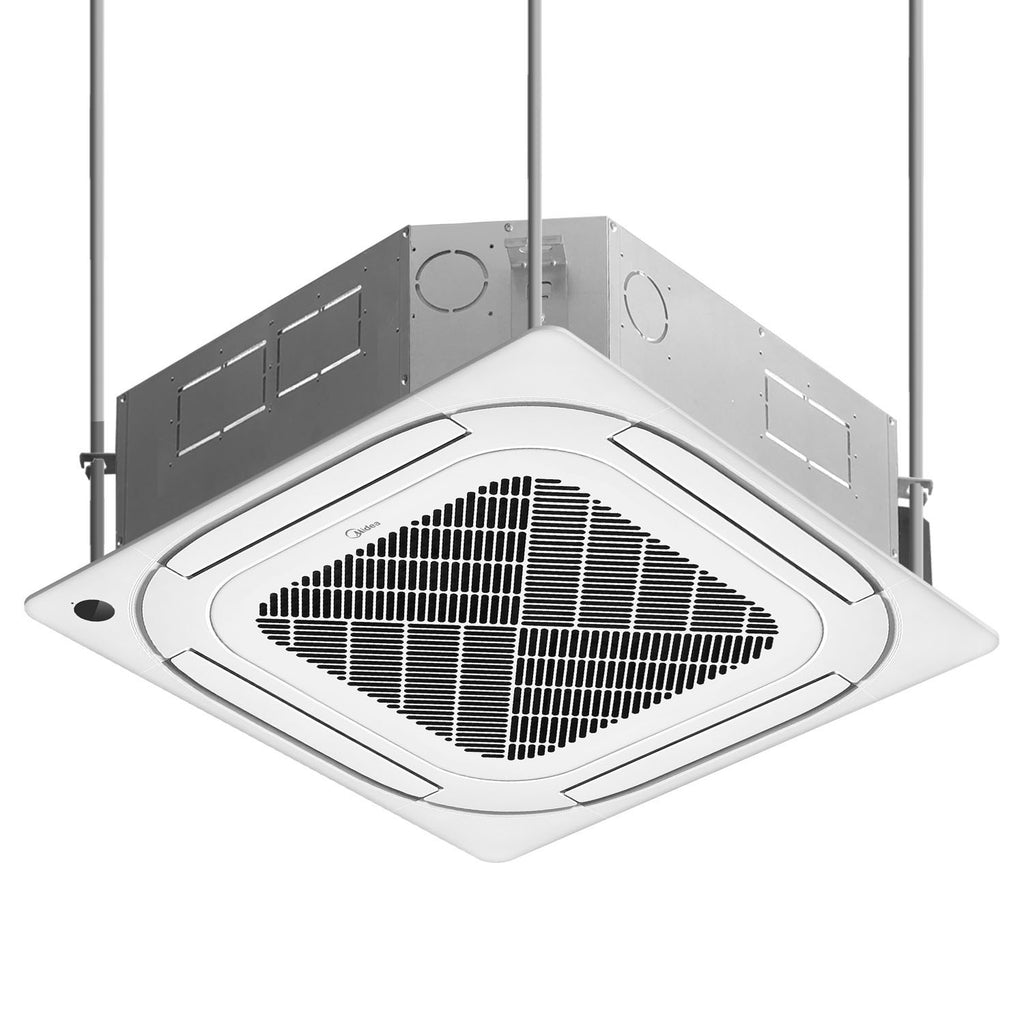

Midea – Inverter 4-Way Cassette (18000BTU)

Inverter Four-Way

Brand: Midea

Model: MCD1-18CRDN8

Capacity: 18000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Indoor Unit:

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240V, 1Ph, 50Hz

Cooling:

• Cooling Capacity (Btu/h): 29000Btu/h
• Input (W): 1700W
• Rated Current (A): 7.5 A
• EER (W/W): 3.28

Rated Power Input: 2200W

Rated Current: 11A

Capacitor: 2 uF

Indoor Fan Motor Speed (High/Middle/Low): 510/390/340 r/min

Indoor Coil:

• Number of rows: 2
• Tube pitch (a) x row pitch (b): 21 x 13.37mm
• Fin spacing: 1.3mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ7, Inner groove tube
• Coil (length x height x width): 2135 x 168 x 26.74mm
• Number of circuits: 4

Indoor air flow (High/Middle/Low): 1040/760/630 m3/h

Indoor noise level (High/Middle/Low): 40/34/31 dB (A)

Drainage water pipe dia: OD Ø32mm

Room Temperature Indoor (Cooling): 16 ~ 32 °C

Outdoor Unit:

Power Supply (V, Ph, Hz): 220-240V, 1Ph, 50Hz

Compressor:

• Type: Rotary
• Capacity (W): 2035W/3255W
• Input (W): 325W/826W
• Rated current (RLA) (A): 2.40A/5.65A

Fan quantity: x1

Outdoor Fan Motor Speed: 980/600 r/min

Outdoor Coil:

• Number of rows: 1.6
• Tube pitch (a) x row pitch (b): 19.5 x 11.6 mm
• Fin spacing: 1.2mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ5, Inner groove tube
• Coil (length x height x width): 875 x 507 x 23.2mm
• Number of circuits: 2

Outdoor noise level: 58 dB (A)

Refrigerant Type: R32/0.8 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm(1/4in)/12.7mm(1/2in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 15m

Operation Temperature: 17 ~ 30 °C

Room Temperature Outdoor (Cooling): 0 ~ 50 °C

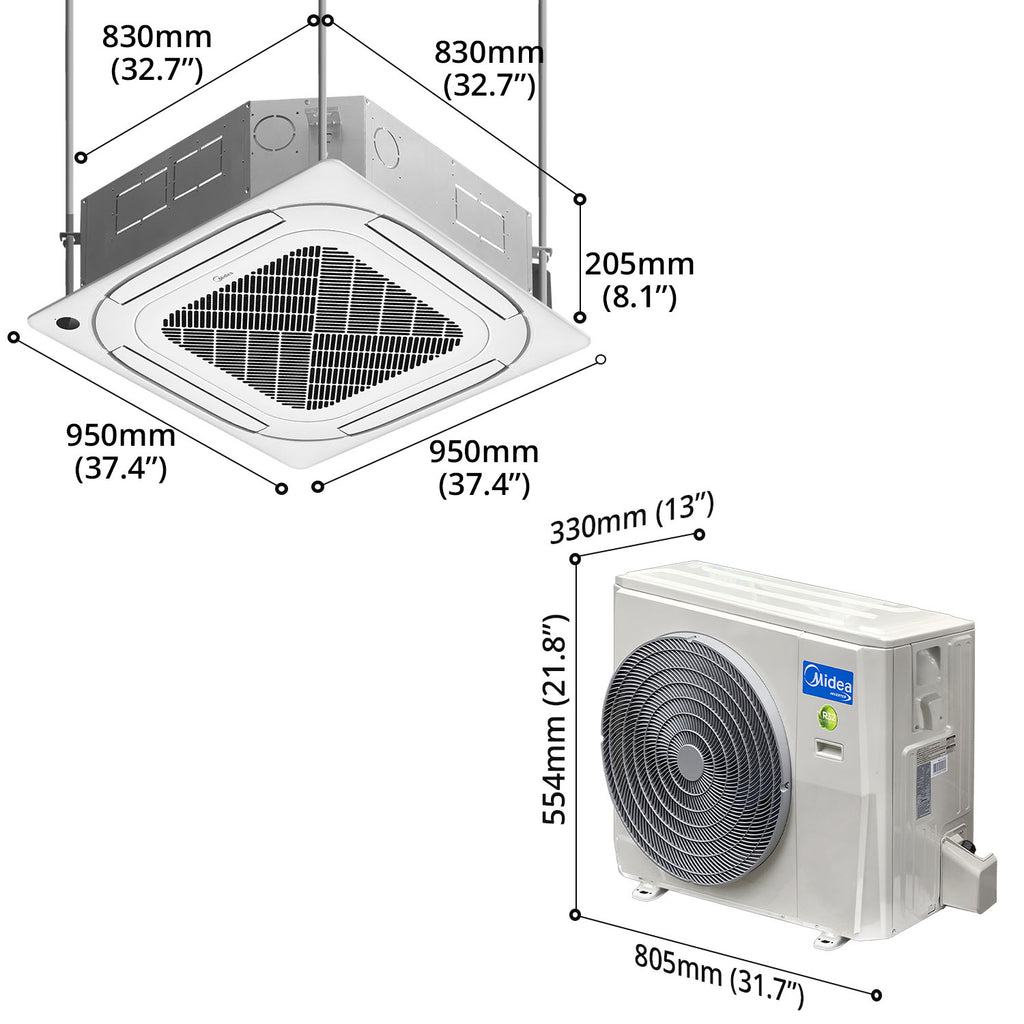

Dimension & Weight:

Weight x Depth x Height

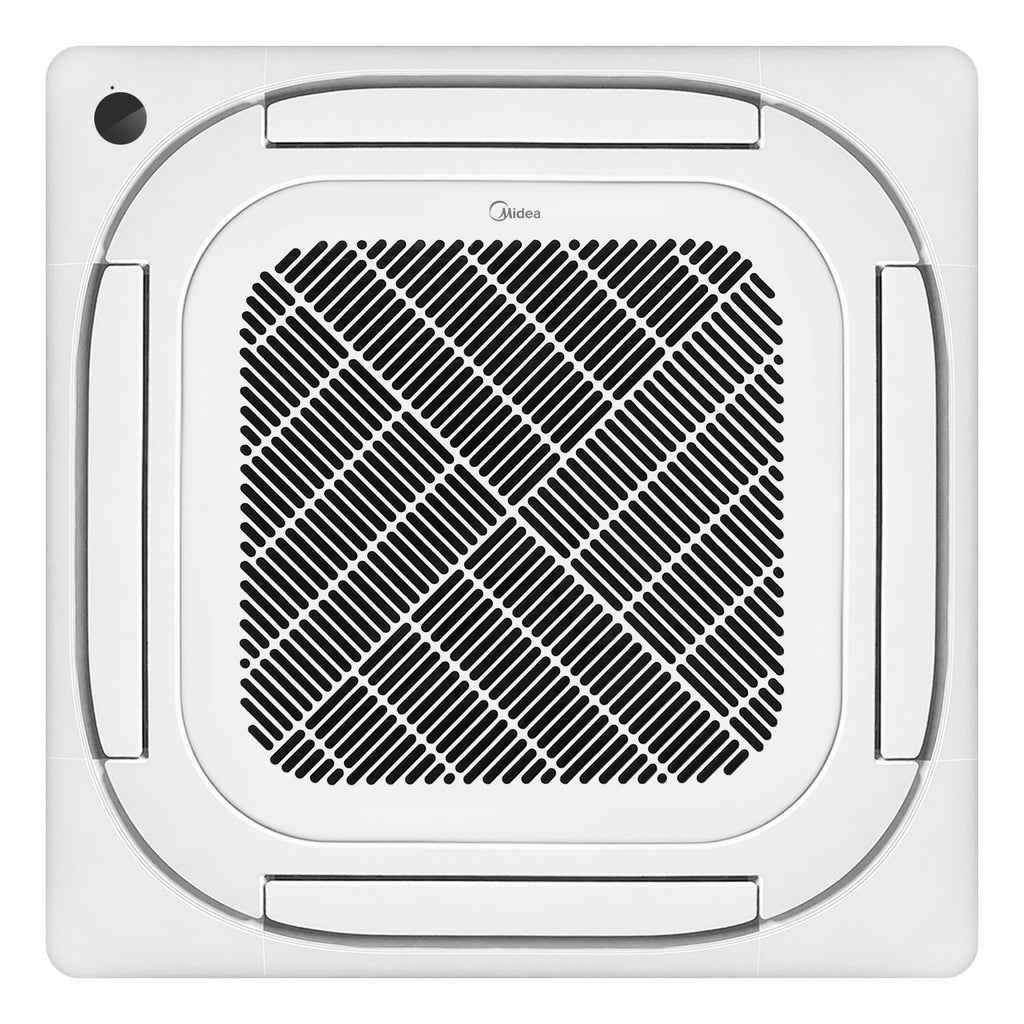

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1035 x 1035 x 90mm
• Net Weight: 6kg
• Gross Weight: 9kg

Indoor Unit:

• Product Dimension: 830 x 830 x 205mm
• Packing Dimension: 910 x 910 x 250mm
• Net Weight: 22.1kg
• Gross Weight: 26.4kg

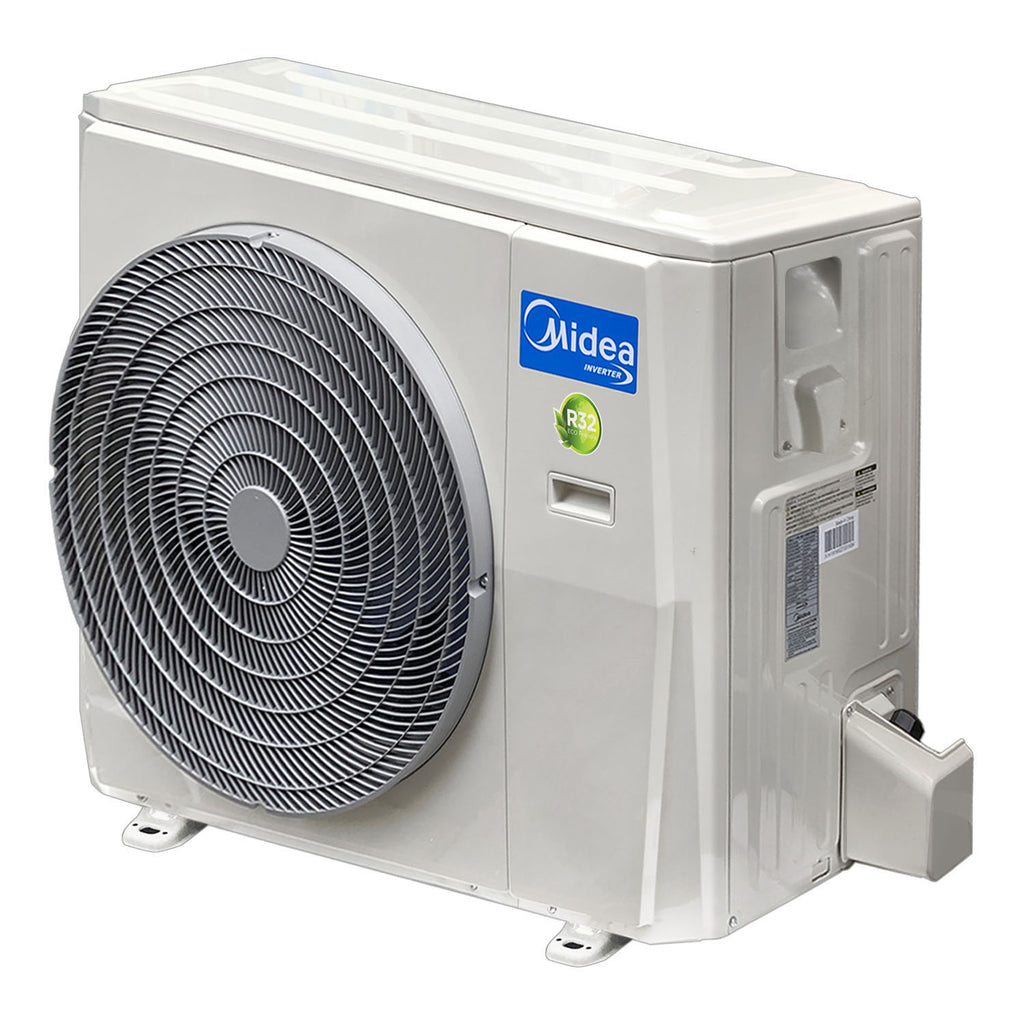

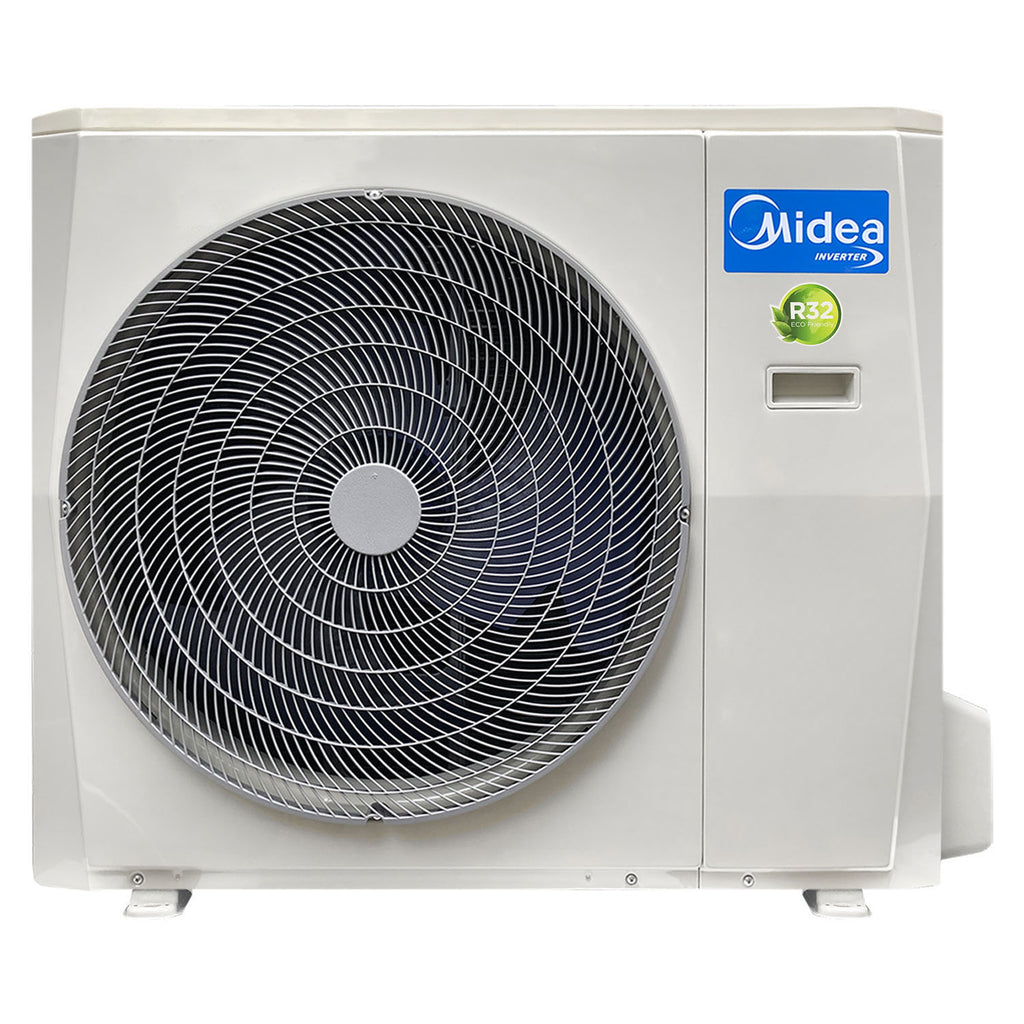

Outdoor Unit:

• Product Dimension: 805 x 330 x 554mm
• Packing Dimension: 915 x 370 x 615mm
• Net Weight: 25.8kg
• Gross Weight: 28.4kg

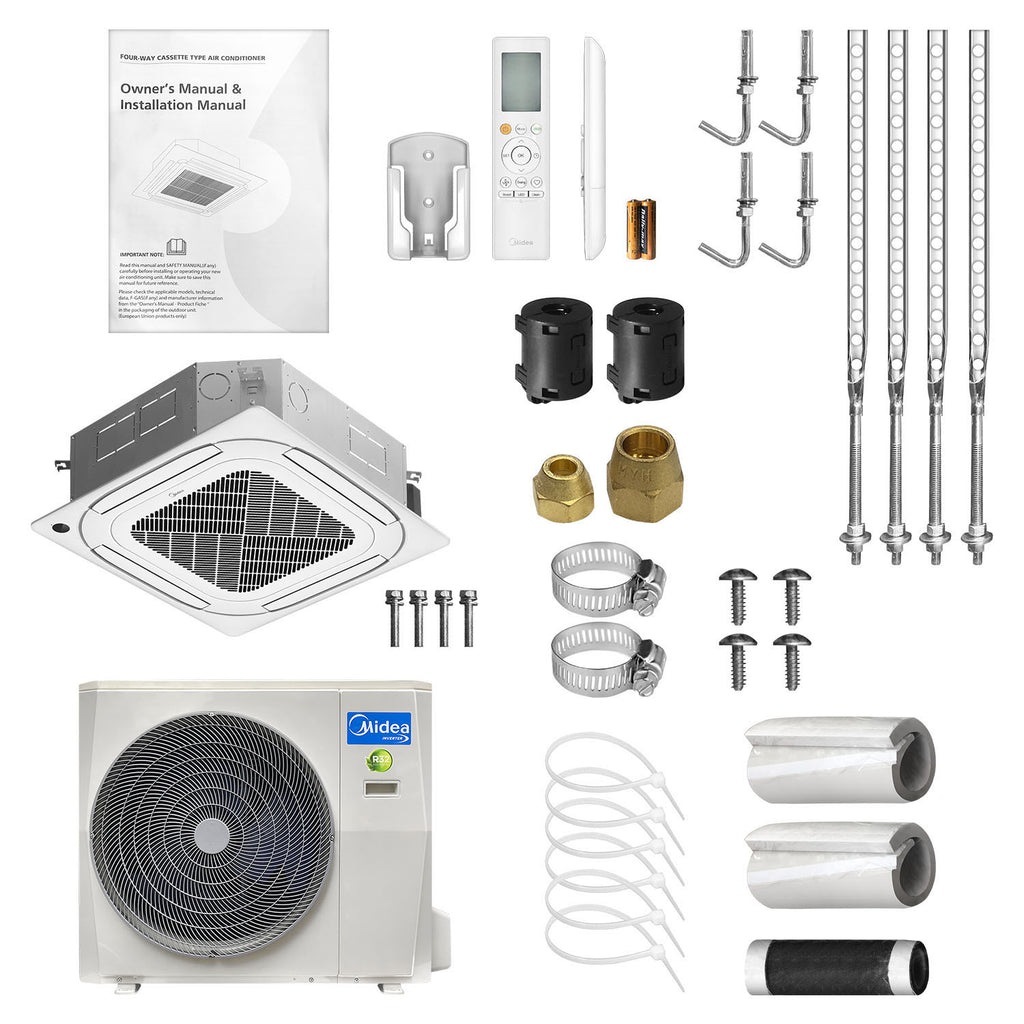

Packing Contents:

18k BTU 4-Way Panel – x1

• Screws – x4

18k BTU Indoor Unit – x1

• Suspension Bolt – x4
• Ceiling Hook – x4
• Hose Clamp – x2
• Screws – x4
• Cable Tie – x6
• Insulation Sheath – x2
• Outlet pipe sheath – x1
• Copper Nut – x2
• Magnetic Ring Cable Filter – x2

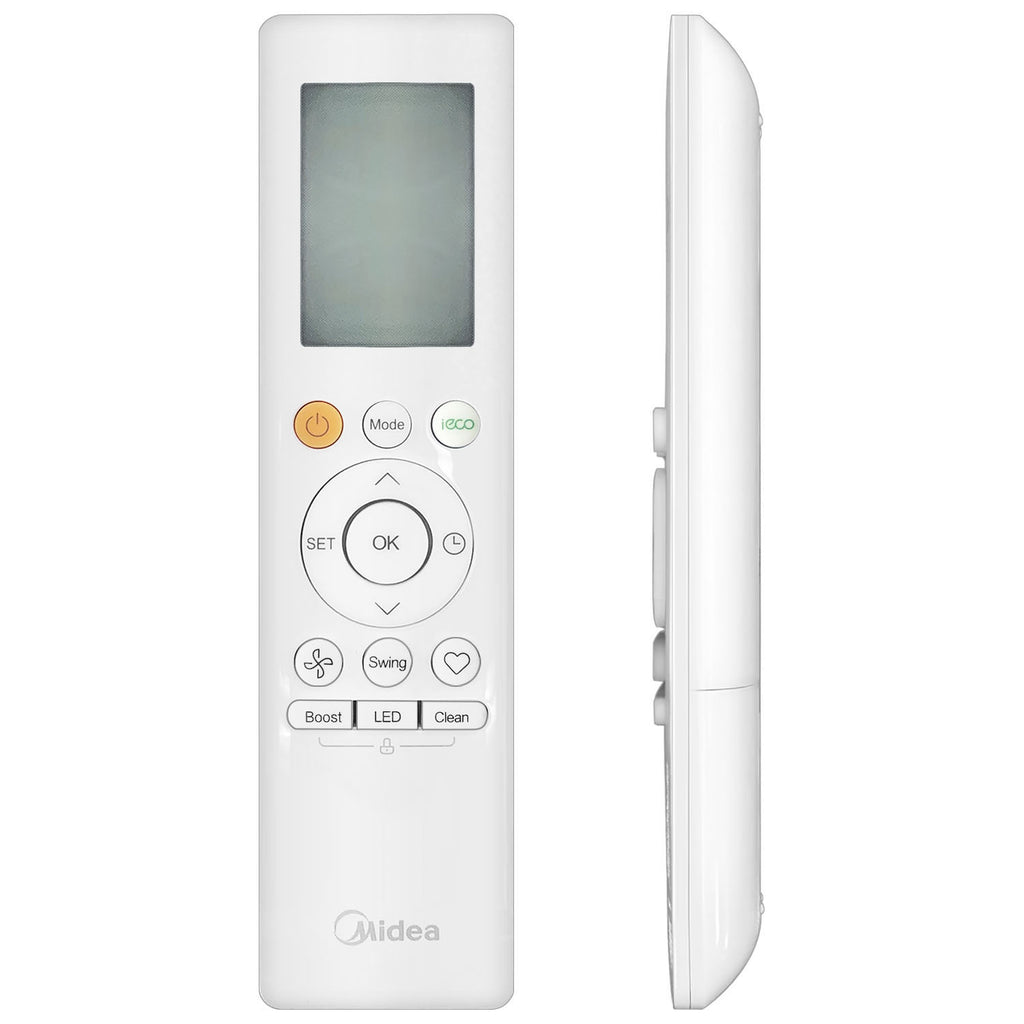

• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1

18k BTU Outdoor Unit – x1
