Specification

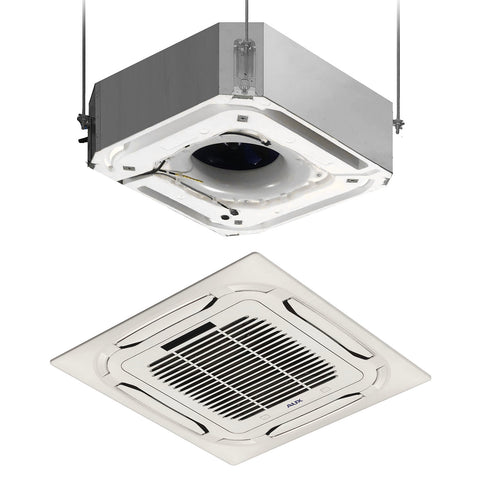

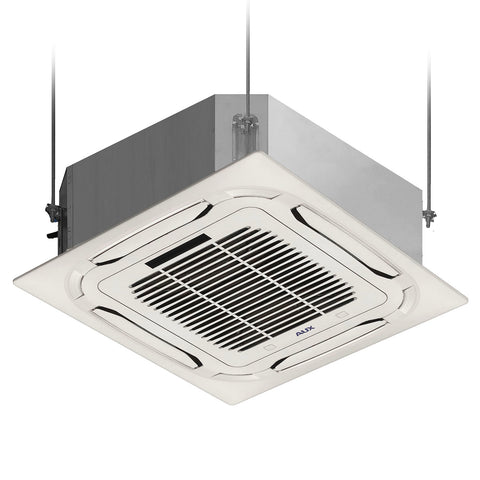

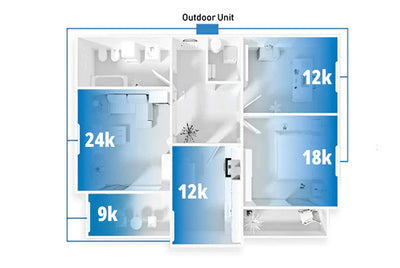

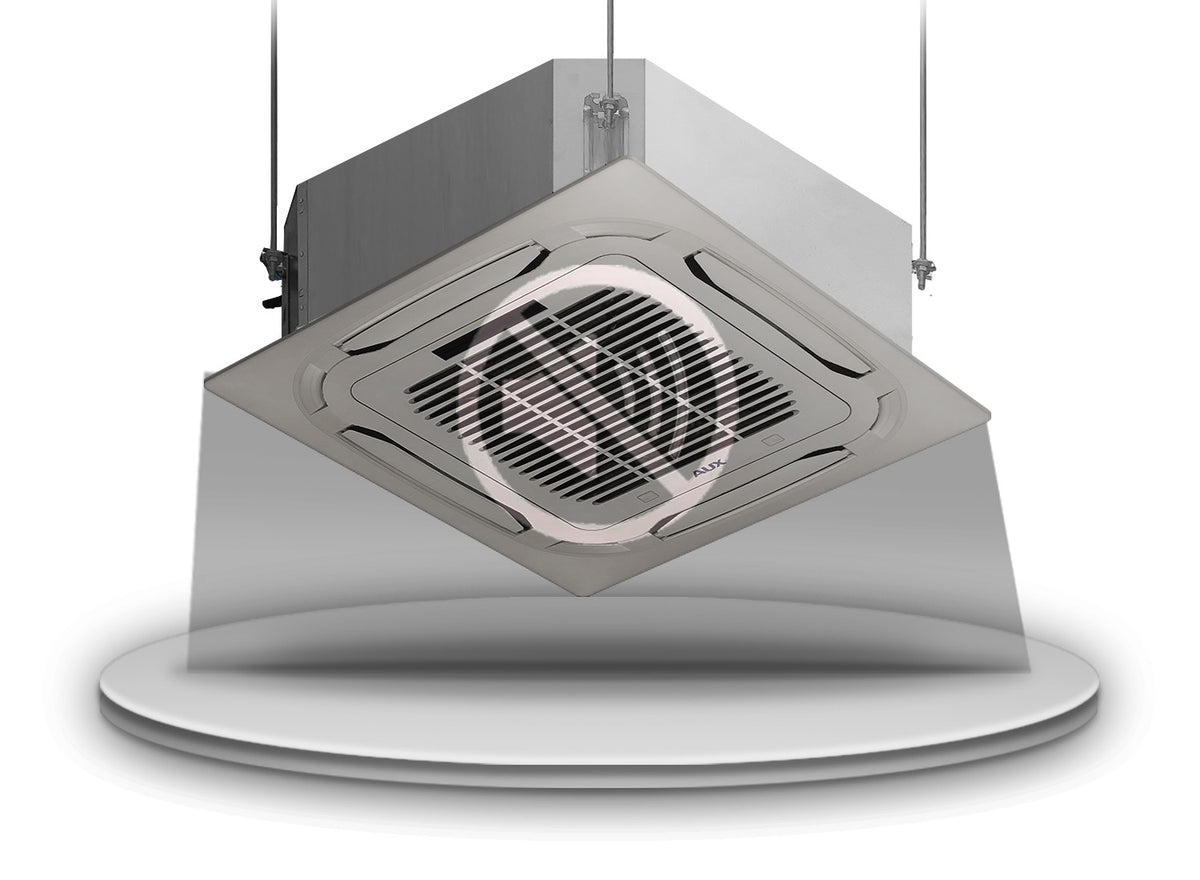

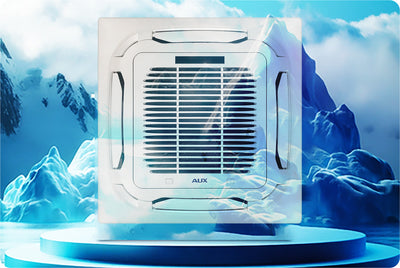

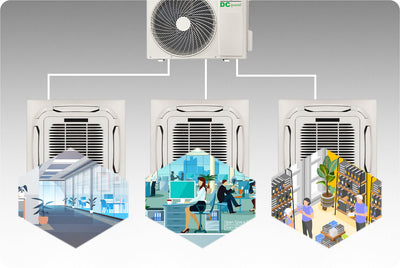

Aux – Multi IDU 4-Way Cassette-type AC

Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMCA-H12/4R3AA

Capacity: 12000BTU

Warranty: 12 Months Warranty

Cooling Capacity:

• 12285 (5800 - 12625) Btu/h
• 3.60 (1.70 – 3.70) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 70 (17.5 - 109) W

Fan Motor:

• Output Power: 30W
• Capacitor: 2uF
• Speed (Hi / Mi / Lo): 810 / 750 / 660 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch x Row Pitch: 20.5 X 12.7mm
• Fin Pitch: 1.5mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 1320 x 205 x 25.4mm

Performance:

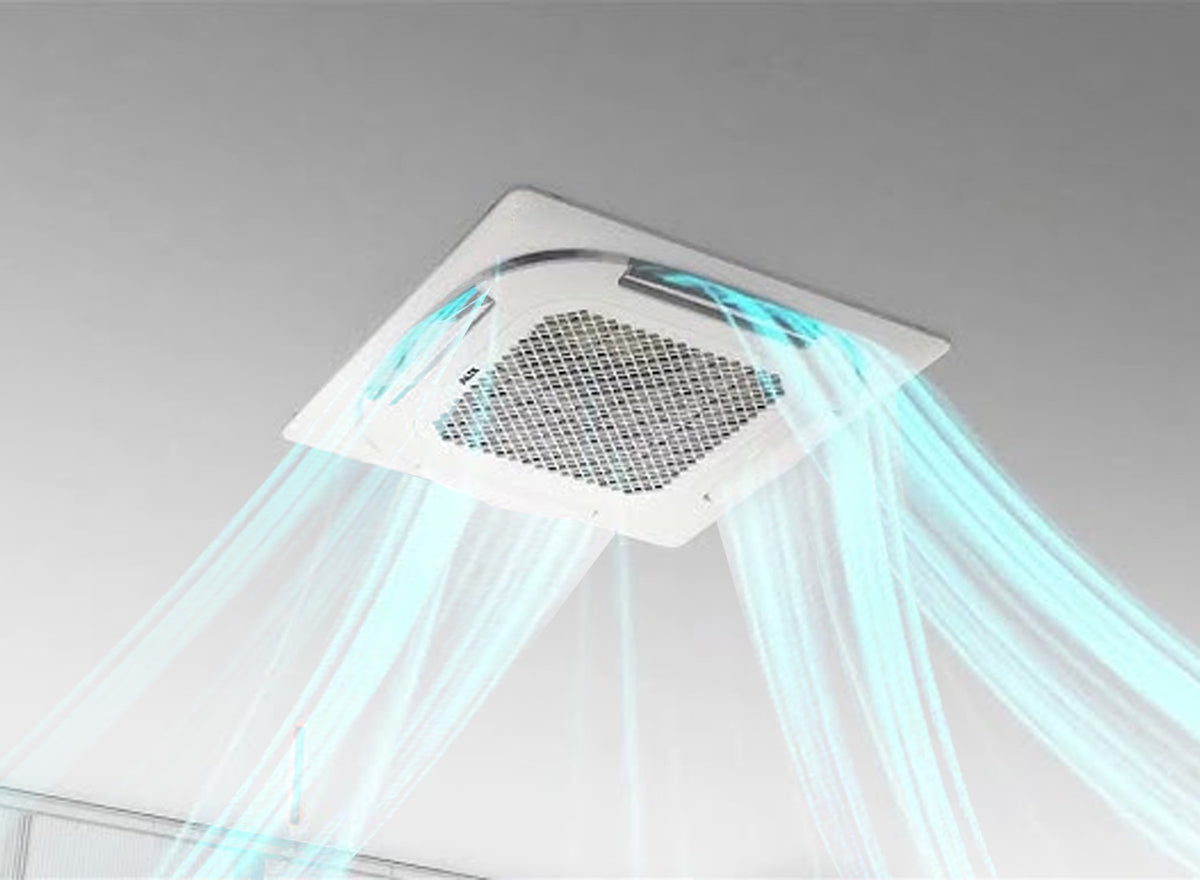

• Air Flow Volume: 412/353/312 CFM, 700/600/530 m³/h
• Sound Pressure Level: 45/41/35 dB (A)
• Sound Power Level: 56 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 12.7mm (1/2")
• Drainage: 20mm

Dimension & Weight:

Width x Depth x Height

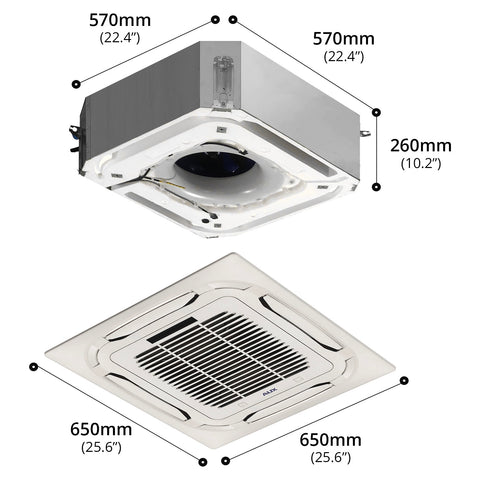

Product Dimension:

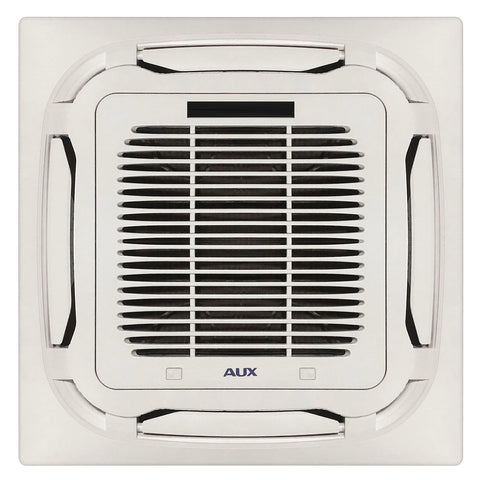

• Panel: 650 x 650 x 55mm (25.6” x 25.6” x 2.2”)
• Indoor Unit: 570 x 570 x 260mm (22.4” x 22.4” x 10.2”)

Packing Dimension:

• Panel: 710 x 710 x 80mm (28” x 28” x 3.1”)
• Indoor Unit: 655 x 655 x 295mm (25.8” x 25.8” x 11.6”)

Net Weight:

• Panel: 2.2kg
• Indoor Unit: 18kg

Gross Weight:

• Panel: 3.7kg
• Indoor Unit: 21kg

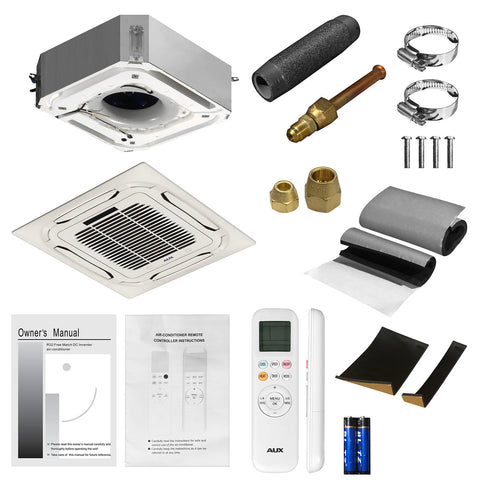

Packing Contents:

Panel – x1

12k Indoor Unit – x1

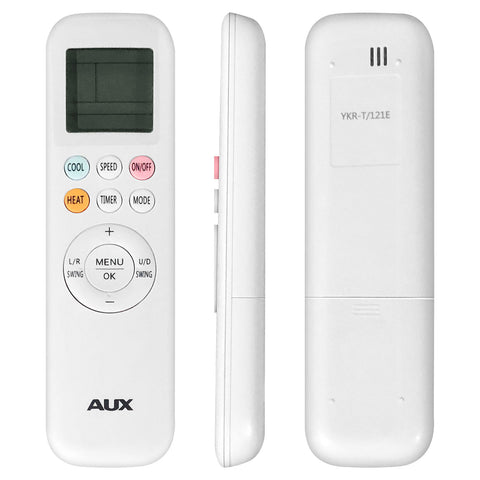

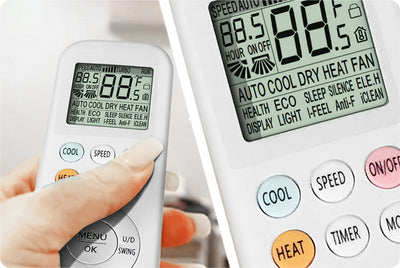

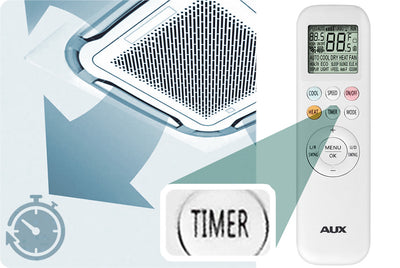

Remote Control – x1

AA Battery – x1

Insulation – x3

Copper Reducer – x1

Flaring Nut – x2

Hose Clamp – x2

Foam Tape – x2

Screws – x4

Remote Control Manual – x1

User Manual – x1
