Specification

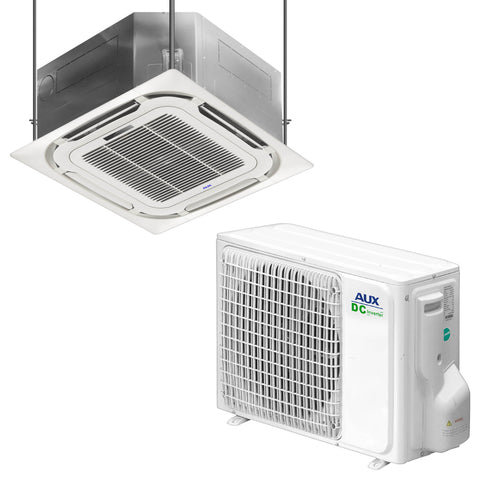

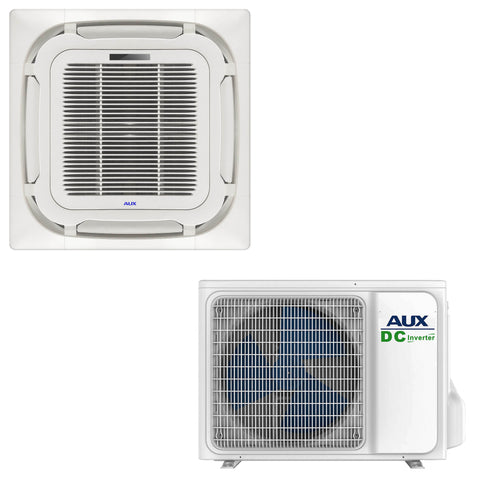

Aux - Inverter 8-Way Cassette (18000BTU)

Brand: Aux

Model: ALCA-C18/4DR3YA(U)

Capacity: 18000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

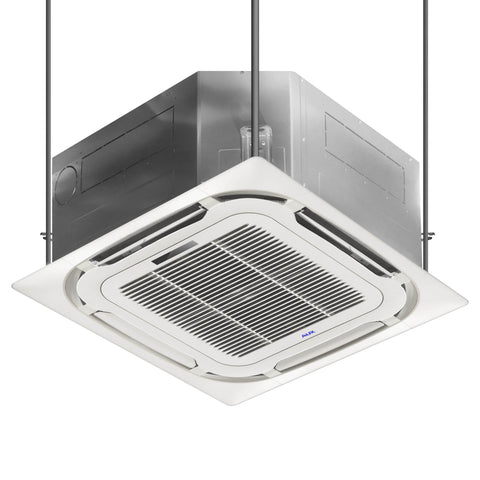

Indoor Unit:

Power Supply: 220-240V, 50Hz, 1Ph

Capacity (Cooling):

• 18000 Btu/h
• 5.28 (1.58 – 5.59) kW

Electric Data

• Rated Cooling Power Input: 1.60 (0.43 – 1.90) kW
• Rated Cooling Current: 8 (2.18 – 8.70) A

Performance:

• EER: 3.30 W/W
• SEER (india): 4.0

Indoor Coil:

• Number Of Row: 2
• Tube Pitch (a) x Row Pitch (b): 19.05 x 11.6mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø5mm, Inner grooved
• Coil (Length x Height x Width):  2084 x 190.5 x 23.2mm

Indoor Fan Motor:

• Output Power: 22W
• Capacitor: 2.00 μF
• Speed (Hi/Mi/Lo): 490/410/350 r/min

Indoor Air Flow (Hi/Mi/Lo): 1100/950/800 m³/h

Noise Level (Hi/Mi/Lo): 42/39/36 dB (A)

Sound Power Level (Hi/Mi/Lo): 52/48/46 dB (A)

Refrigerant Pipe:

• Liquid Side: Ø6.35mm
• Gas Side: Ø12.70mm

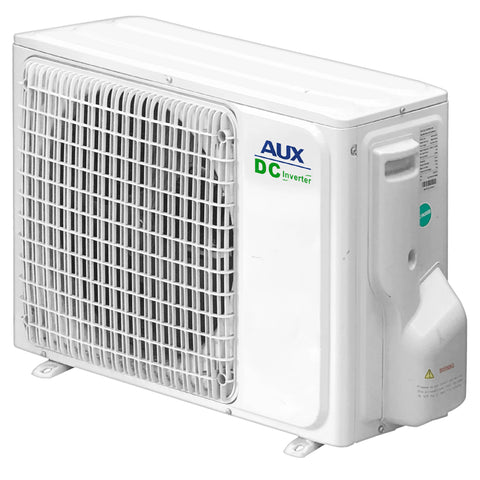

Outdoor Unit:

Power Supply: 220-240V, 50Hz, 1Ph

Max. Input Consumption: 2000W

Max. Current: 10A

DC Inverter Compressor:

• Type: Rotary
• Capacity: 3375W
• Input: 805W
• Frequency range: 15-130Hz
• Rated Current (RLA): 2.52A
• Refrigerant Oil: 300ml (ALF68SZ)

Outdoor Fan Motor

• Output Power x Fan quantity: 35W x1
• Speed: 920 r/min

Coil:

• Number Of Row: 2
• Tube Pitch (a)x Row Pitch (b): 19.05 x 11.6mm
• Fin Pitch: 1.4mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø5mm, Inner grooved
• Coil (Length x Height x Width): 688 x 495 x 23.2mm
• Number of circuits: 4

Air Flow Volume: 1353 CFM, 2300 m³/h

Noise Level:

• Sound Pressure Noise Level: 52 dB(A)
• Sound Power Noise Level: 62 dB(A)

Design Pressure: 4.4/1.4 MPa

Refrigerant: R32, 740g

Refrigerant Piping:

• Liquid Side: Ø6.35mm
• Gas Side: Ø12.7mm
• Length: 20m
• Height: 15m

Operation Temperature Range: 16°C ~ 32°C

Ambient Temperature Range (Cooling): 18°C ~ 48°C

Connection Wiring:

• Power Wiring: 3 x 1.5mm²
• Signal Wiring: 3 x 1.0 + 1 x 1.0mm²

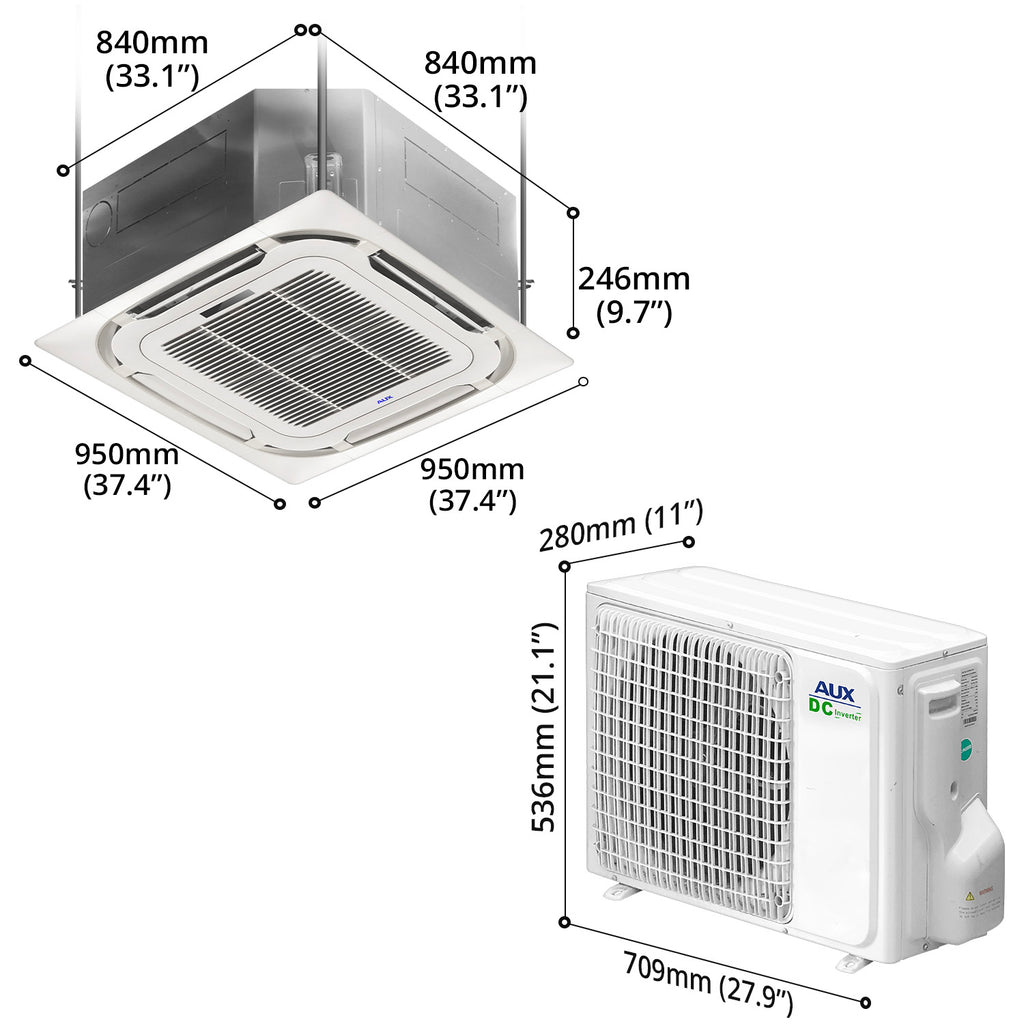

Dimension & Weight:

Weight x Depth x Height

Indoor Unit:

• Product Dimension: 840 x 840 x 246mm
• Packing Dimension: 910 x 910 x 310mm
• Net Weight: 25kg
• Gross Weight: 29kg

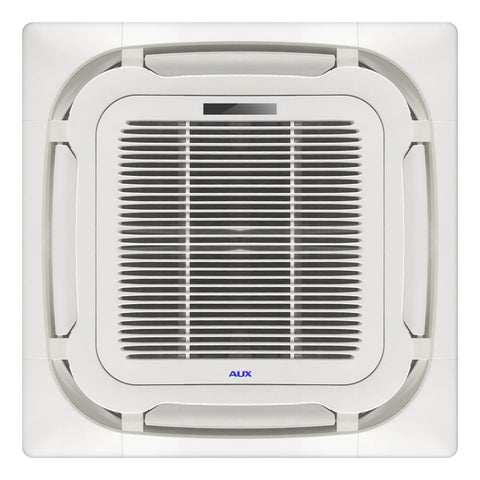

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1000 x 1000 x 100mm
• Net Weight: 5.3kg
• Gross Weight: 7.8kg

Outdoor Unit:

• Product Dimension: 709 x 536 x 280mm
• Packing Dimension: 825 x 345 x 595mm
• Net Weight: 23kg
• Gross Weight: 25kg
