Epson (TM-U220A) Receipt Printer

Easy-to-use impact printer

• The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use.

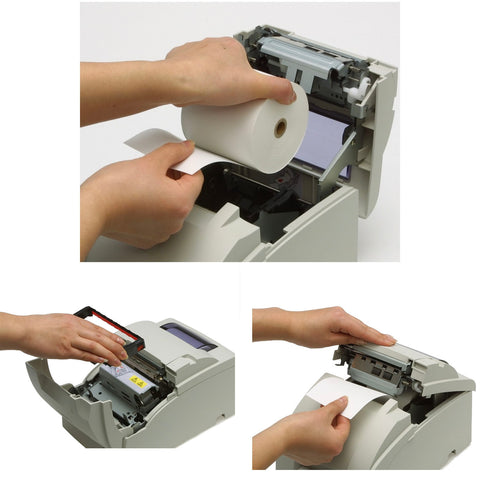

• Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.

Compact

• Space-saving and versatile, it has a footprint of just 160(W) x 248 (D) x 133 (H) mm, and can also be wall-mounted.

Brand: Epson

Model: TM-U220A

Color: EDG (Epson Dark Grey)

Print Type

• Print method: 9-pin serial impact dot matrix
• Technology: Serial Impact Dot Matrix

Fonts & Styles

• Print Speed: 4.70 lps (40 columns, 16.00 cpi)
• Column capacity receipt: Paper width 76 mm, 33 / 40
• Character size: 1.6 mm (W) x 3.1 mm (H) / 1.2 mm (W) x 3.1 mm (H)
• Character set: 95 Alphanumeric, 48 International, 128 x 12 Graphic
• Characters per inch: 13.3 cpi / 16 cpi

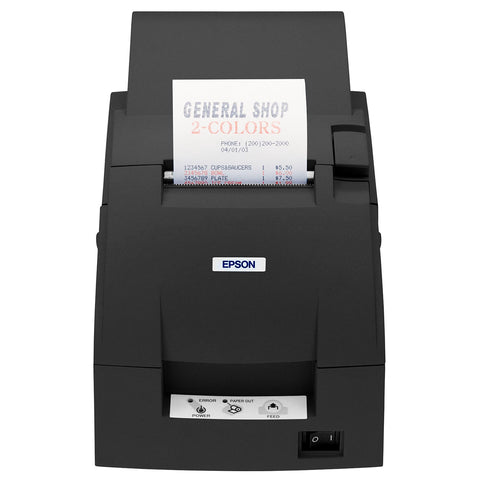

• Colour Printing: Two Colors

Paper

• Paper Types: Receipt
• Copy capability receipt: One copies plus one original

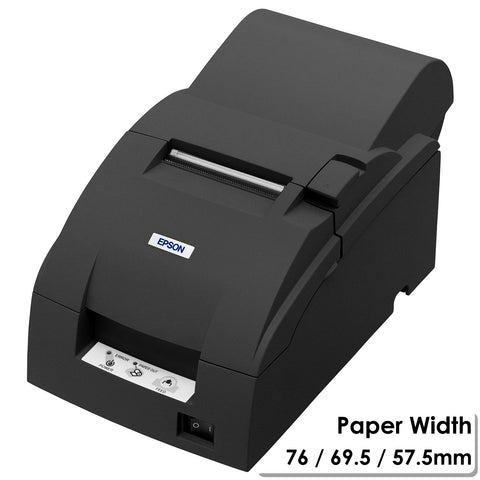

• Paper size roll paper:
• 76.00 ± 0.50 (W) mm x dia 83.00 mm,
• 69.50 ± 0.50 (W) mm x dia 83.00 mm
• 57.50 ± 0.50 (W) mm x dia 83.00 mm

Ribbon Cartridge Compatibility:

• Epson (ERC38BR) Ribbon Cartridge (Black / Red) - C43S015376
• Epson (ERC38B) Ribbon Cartridge (Black) - C43S015374

Power

• Power Supply: PS-180 (option)
• Operating voltage: 24 V

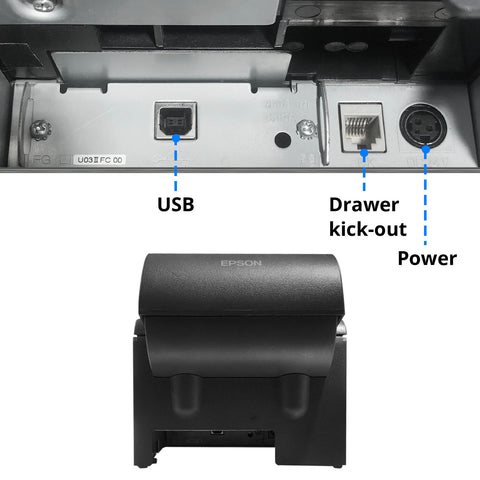

Interfaces

• RS-232
• Drawer kick-out
• Bidirectional parallel

General

• Installation: Horizontally, vertically with wall hanging bracket
• Interface connectors: D.K.D. function (2 drivers)
• Noise Level: Operation: 64 dB (A)
• Humidity: Operation 10% - 90%, Storage 10% - 90%
• Temperature: Storage -10° C - 50° C

Reliability

• Reliability: 18,000,000 MCBF (Lines), 180,000 MTBF (Hours)
• Auto Cutter Life: 800,000 Cuts
• Printer Life: 7,500,000 lines

Standards Compliance

• EMC Standards: CE marking
• Safety standards: TÜV

Other Features

• Changeable interface: Yes
• Cutter: Partial Cut
• Sensors: Roll paper cover open sensor, Paper End Sensor

Dimension & Weight:

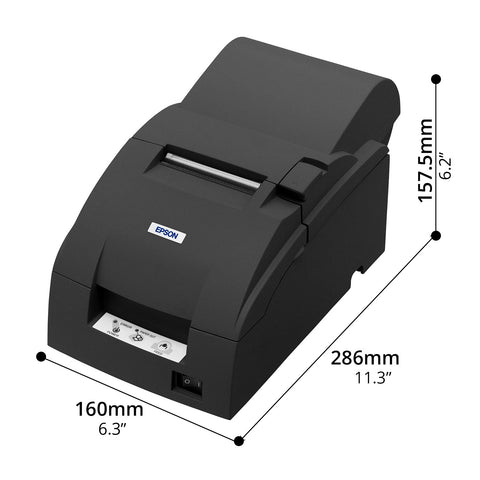

• Product dimensions (W x D x H): 160‎ x 248 x 139 mm
• Product weight: 2.7 kg

What’s in the Box?

• Main unit
• PS-180
• Ribbon
• Roll paper
• Thermal roll paper
• User manual
