Specification

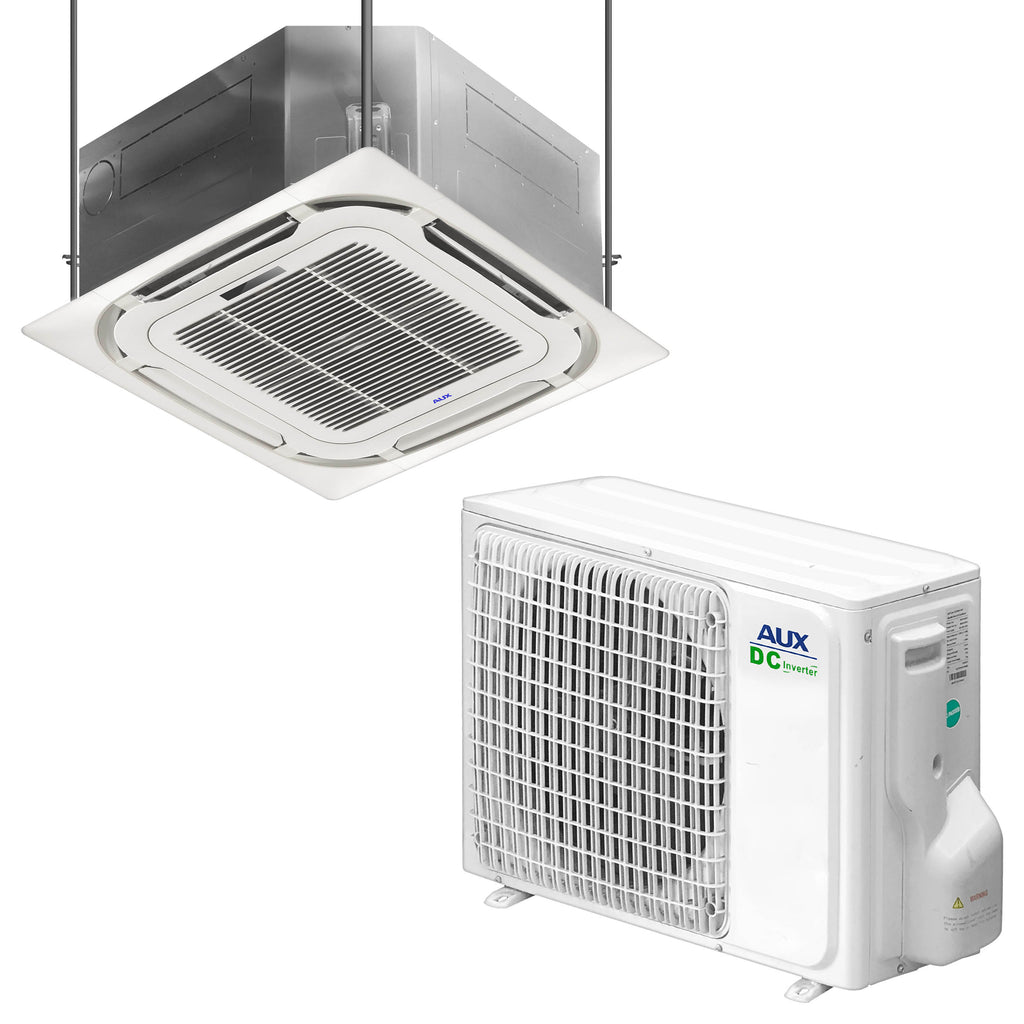

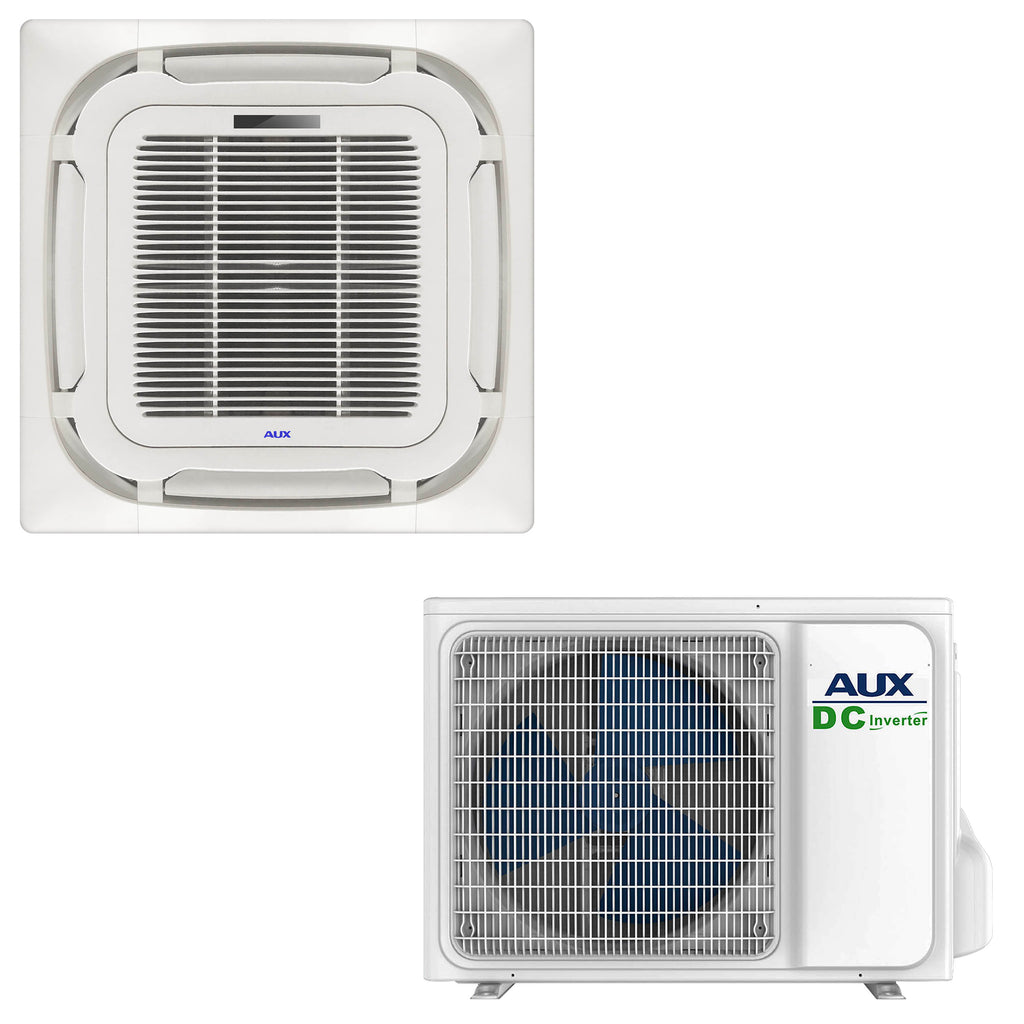

Aux - Inverter 8-Way Cassette (36000BTU)

Brand: Aux

Model: ALCA-C36/4DR3YA(U)

Capacity: 36000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

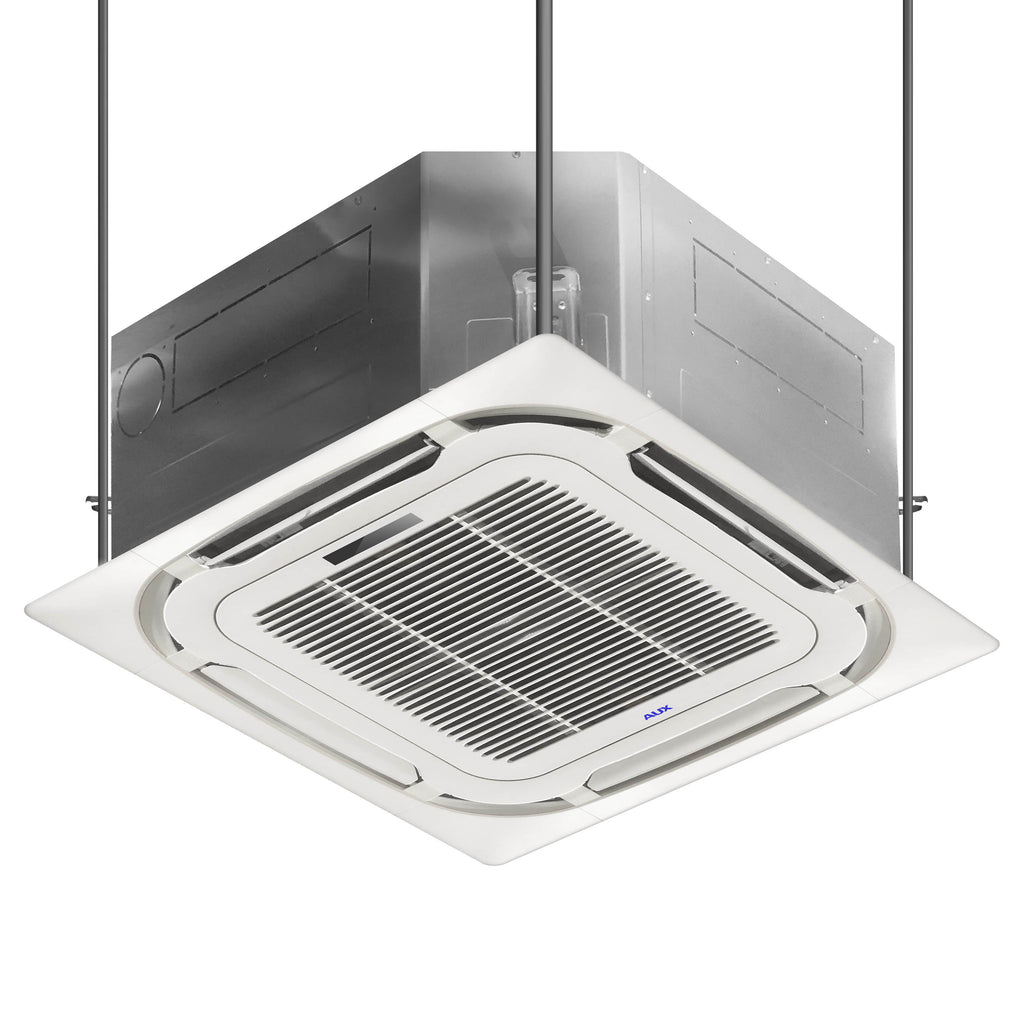

Indoor Unit:

Power Supply: 220-240V, 50Hz

Capacity (Cooling):

• 36000 Btu/h
• 10.55 (2.95 – 11.11) kW

Electric Data

• Rated Cooling Power Input: 3.50 (0.51 – 3.63) kW
• Rated Cooling Current: 15.55 (2.21 – 16.80) A

Performance:

• EER: 3.01 W/W
• SEER (india): 3.6

Indoor Coil:

• Number Of Row: 2
• Tube Pitch (a) x Row Pitch (b): 19.05 x 11.6mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø5mm, Inner grooved
• Coil (Length x Height x Width): 2084 x 190.5 x 23.2mm

Indoor Fan Motor:

• Output Power: 70W
• Capacitor: 6.00 μF
• Speed (Hi/Mi/Lo): 750/610/525 r/min

Indoor Air Flow (Hi/Mi/Lo): 1800/1450/1250 m³/h

Noise Level (Hi/Mi/Lo): 53/51/47 dB (A)

Sound Power Level (Hi/Mi/Lo): 63/61/57 dB (A)

Refrigerant Pipe:

• Liquid Side: Ø9.52mm
• Gas Side: Ø15.88mm

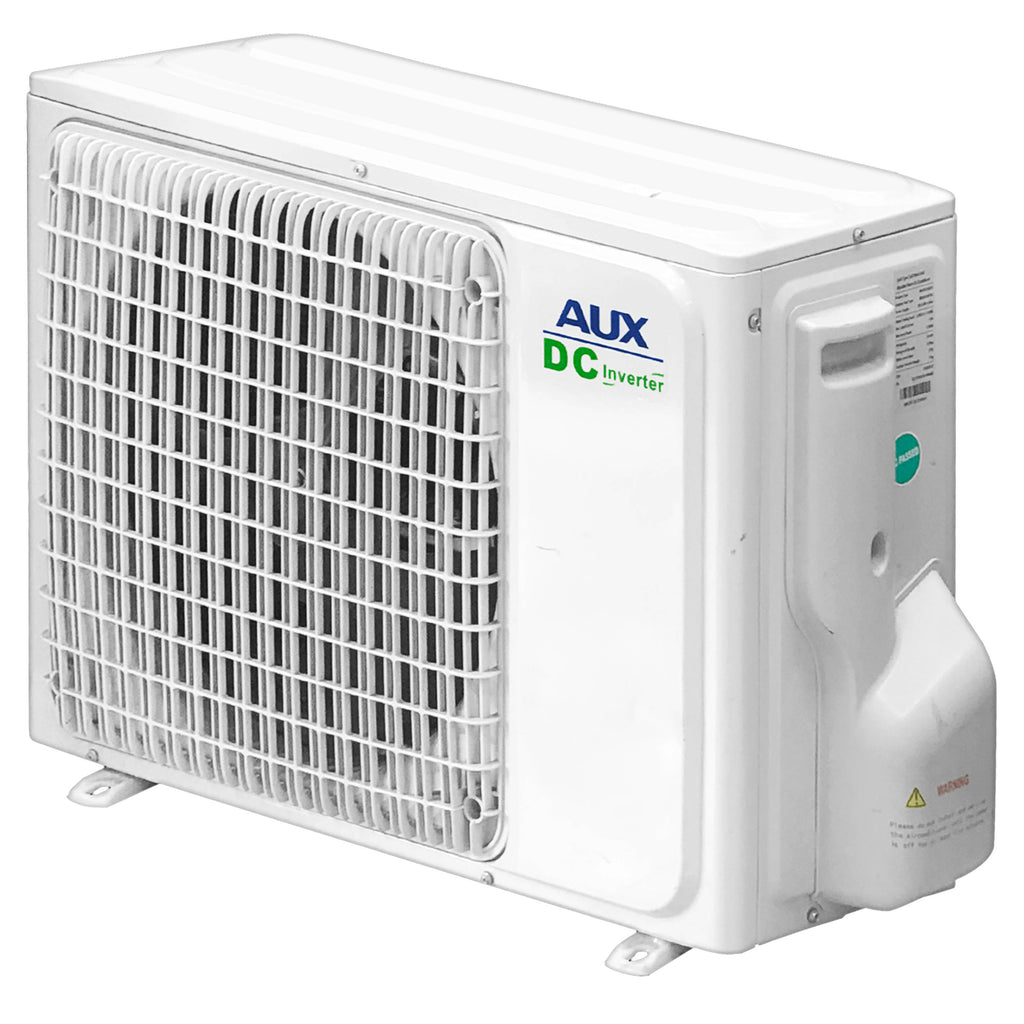

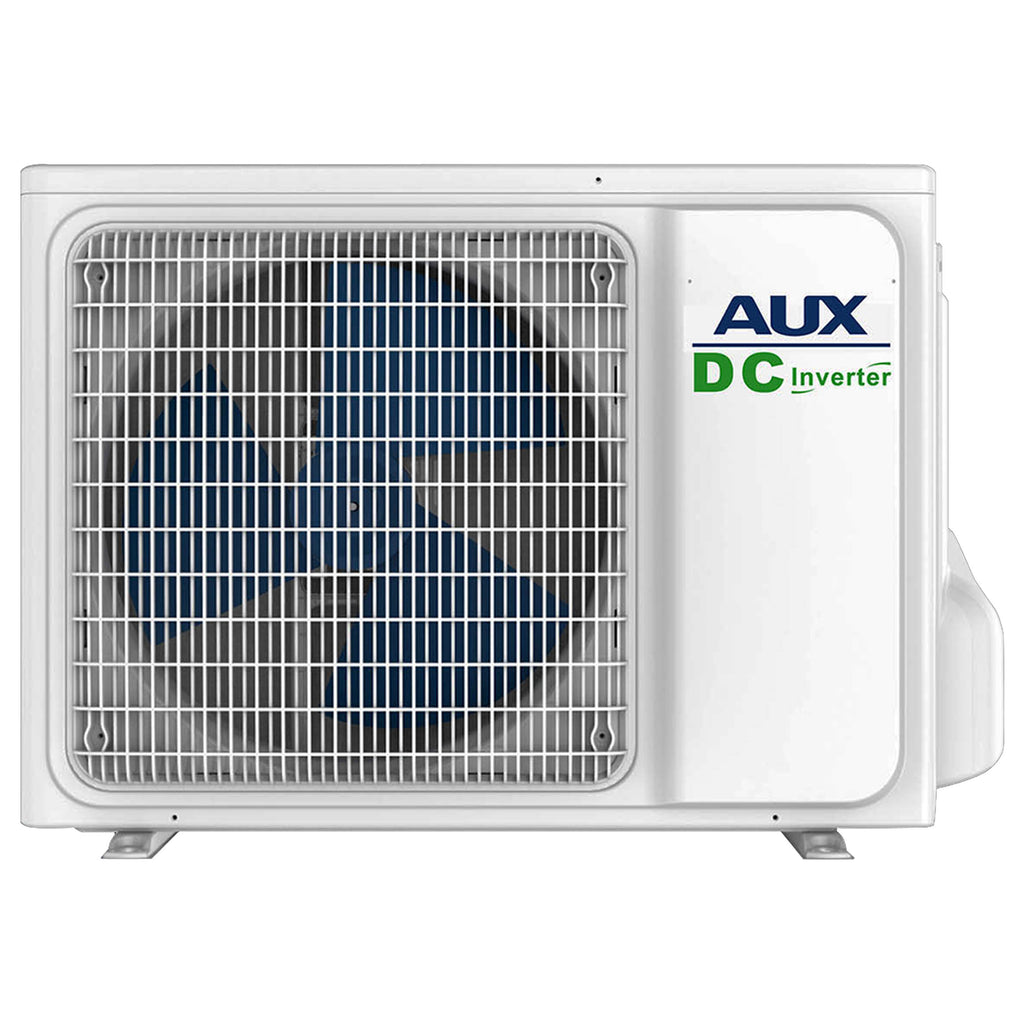

Outdoor Unit:

Power Supply: 220-240V, 50Hz, 1-Phase

Max. Input Consumption: 4000W

Max. Current: 18A

DC Inverter Compressor:

• Type: Rotary
• Capacity: 7555W
• Input: 2050W
• Frequency range: 12-120Hz
• Rated Current (RLA): 9.35A
• Refrigerant Oil: 620ml (VG74)

Outdoor Fan Motor

• Output Power x Fan quantity: 65W x1
• Speed: 820 r/min

Coil:

• Number Of Row: 3
• Tube Pitch (a)x Row Pitch (b): 20.5 x 12.7mm
• Fin Pitch: 1.5mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø7mm, Inner grooved
• Coil (Length x Height x Width): 933 x 656 x 38.1mm
• Number of circuits: 4

Air Flow Volume: 2059 CFM, 3500 m³/h

Noise Level:

• Sound Pressure Noise Level: 57 dB(A)
• Sound Power Noise Level: 67 dB(A)

Design Pressure: 4.4/1.4 MPa

Refrigerant: R32, 1800g

Refrigerant Piping:

• Liquid Side: Ø9.52mm
• Gas Side: Ø15.88mm
• Length: 30m
• Height: 20m

Operation Temperature Range: 16°C ~ 32°C

Ambient Temperature Range (Cooling): 18°C ~ 48°C

Connection Wiring:

• Power Wiring: 3 x 2.5mm²
• Signal Wiring: 3 x 1.0 + 1 x 1.0mm²

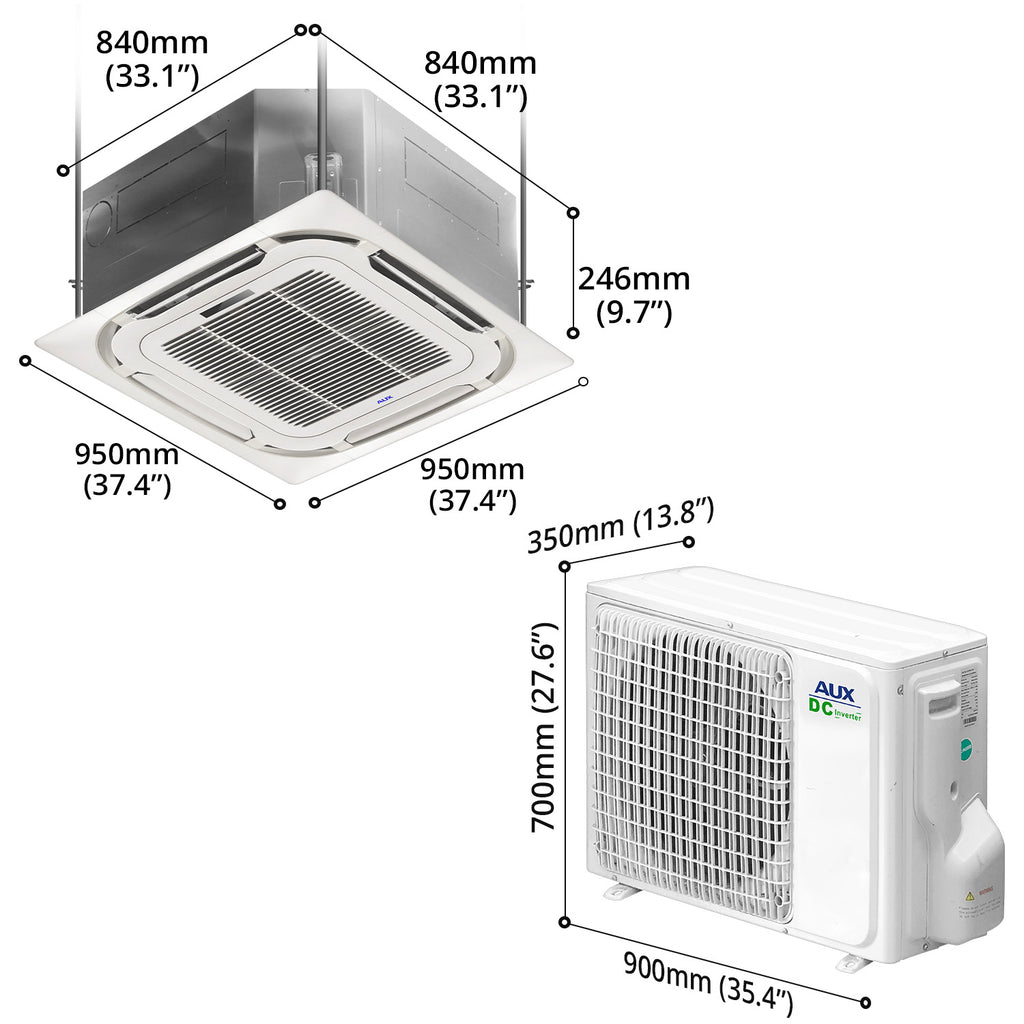

Dimension & Weight:

Weight x Depth x Height

Indoor Unit:

• Product Dimension: 840 x 840 x 246mm
• Packing Dimension: 910 x 910 x 310mm
• Net Weight: 25kg
• Gross Weight: 29kg

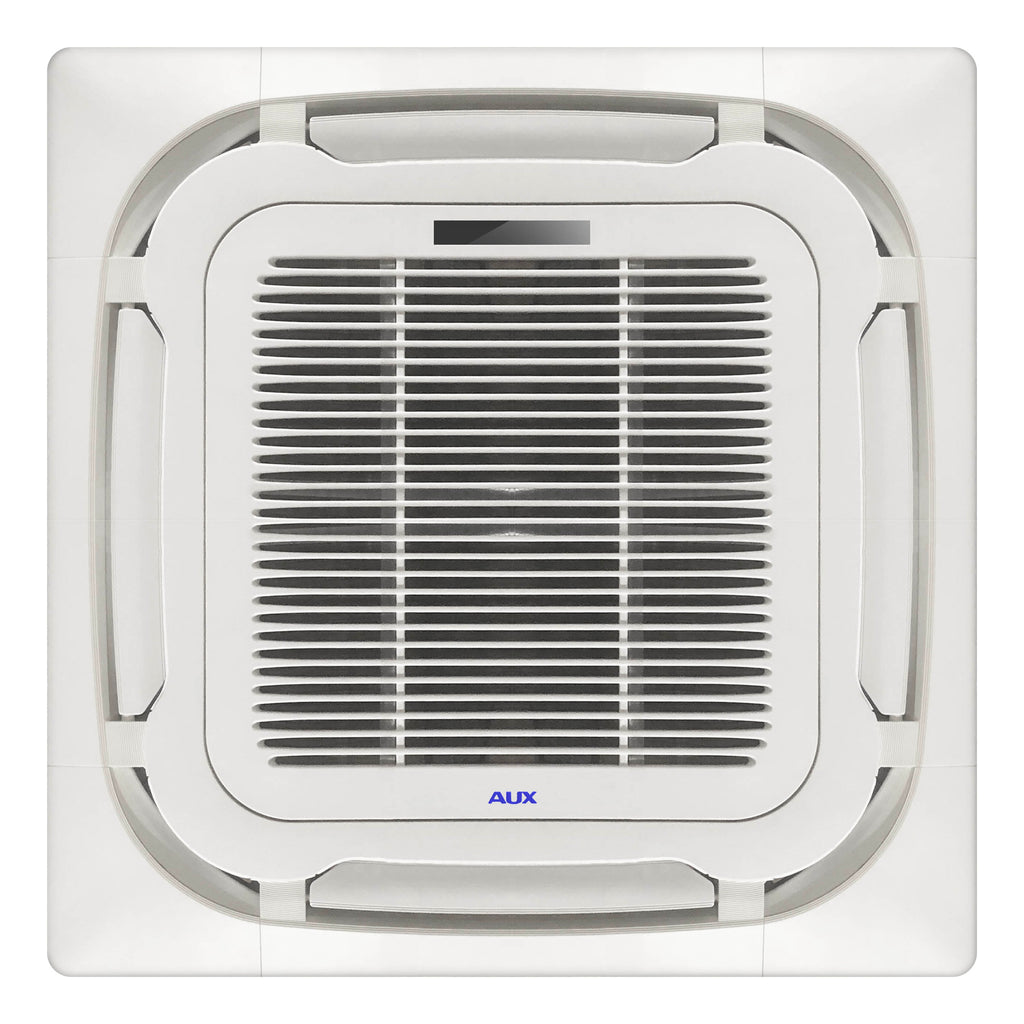

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1000 x 1000 x 100mm
• Net Weight: 5.3kg
• Gross Weight: 7.8kg

Outdoor Unit:

• Product Dimension: 900 x 350 x 700mm
• Packing Dimension: 1020 x 430 x 760mm
• Net Weight: 45kg
• Gross Weight: 48kg
