Specification

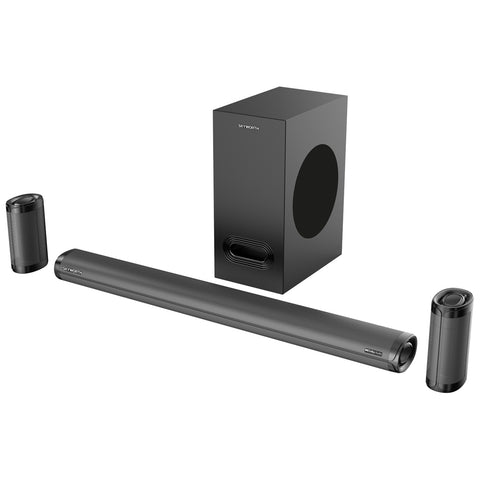

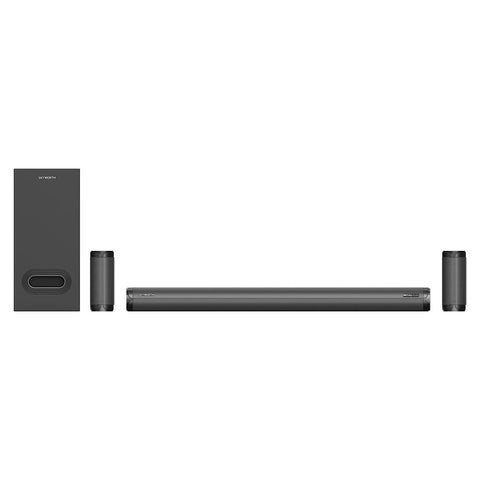

Skyworth – Sound Bar

5.1CH Home Cinema Soundbar System

Brand: Skyworth

Model: SS586

Color: Black

Wi-Fi: None

Soundbar Length: 960mm (37.9”)

Bluetooth Version: v5.0

Bluetooth Operating Range: up to 10m

Audio Output Power (Total Max.): 630W

Signal-to-Noise Ratio: ≥72dB

Frequency Response: 45Hz – 20KHz

Impedance: 8Ω x3 + 8Ω x2 + 4Ω

Input Sensitivity:

• Soundbar: 800mV±50mV
• Subwoofer: 400mV±50mV
• Surround: 800mV±50mV

Drivers: 3x (58 x 90mm) + 2x (52 x 75mm) + 1x (6.5”)

Warranty: 12 Months Warranty

Features:

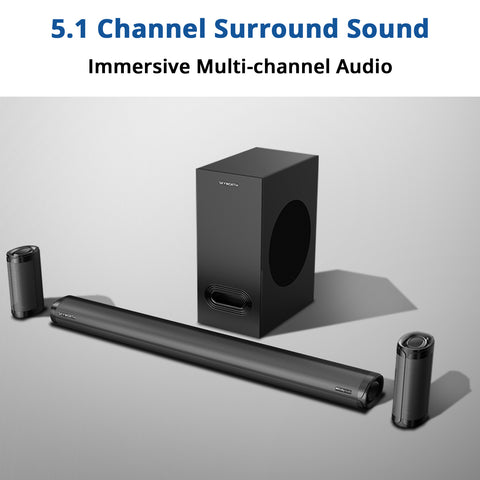

• Channels: 5.1 CH
• Max. Audio Power 630 W
• Bluetooth v5.0 Compliance
• BT Operating Range: up to 10m
• Wireless Surround Speaker
• Dolby Audio Technologies (Dolby Digital Plus, Dolby Digital)
• Selectable EQ: Music, Movie, News, Sport
• Aux Input
• Optical Input
• HDMI with ARC
• USB File Formats: MP3
• LED indicator

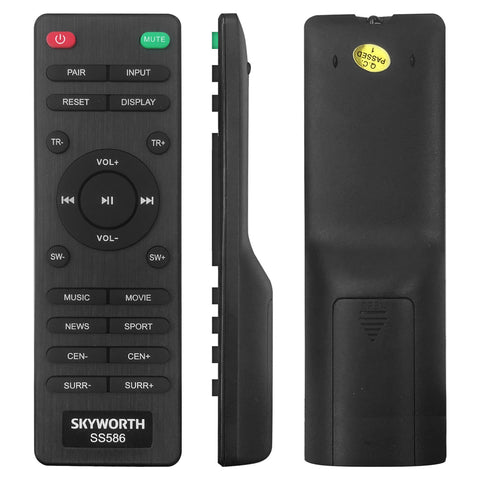

• Remote Control included
• Wall-Mountable (kit included)

Power:

• Soundbar: AC110-240V, 50/606Hz
• Surround: DC 24V, 1.25A

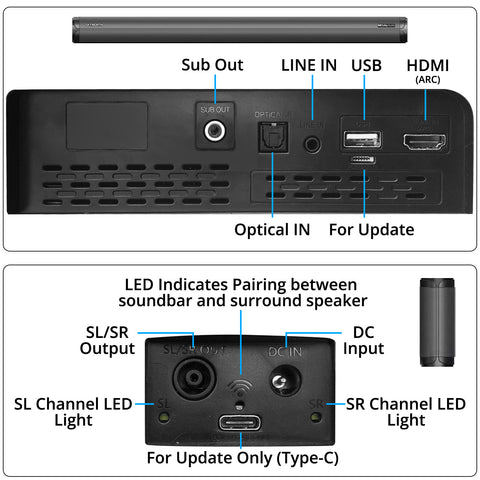

Connectivity:

Soundbar:

• USB – x1
• HDMI (ARC) – x1
• Line Input – x1
• For Update Port (For software update only) – x1
• Subwoofer Output (Sub Out) – x1
• Digital Audio Output (Optical) – x1
• AC Input – x1

Surround Speaker (only one speaker):

• SL/SR Out – x1
• DC Input – x1
• For Update Port (For software update only) – x1

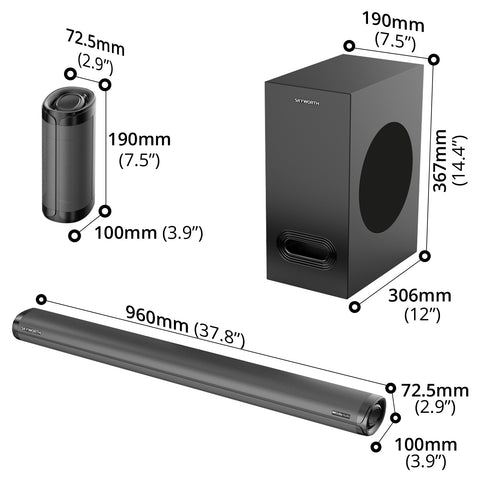

Dimension & Weight:

Width x Depth x Height

Product Dimension:

• Soundbar Size: 960 x 100 x 72.5mm (37.8” x 3.9” x 2.9”)
• Surround Size: 72.5 x 100 x 190mm (2.9” x 3.9” x 7.5”)
• Subwoofer Size: 190 x 306 x 367mm (7.5” x 12” x 14.4”)

Packing Dimension: 1020 x 242 x 497mm (40.2” x 9.5” x 19.6”)

Gross Weight: 9.8kg

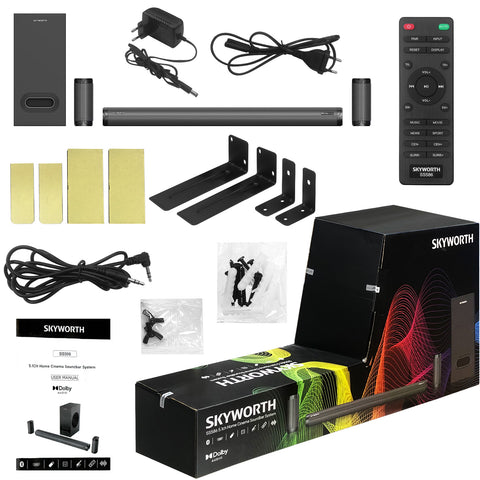

Packing Contents:

Sound Bar – x1

Surround Speaker – x2

Subwoofer – x1

Remote Control – x1

Adapter – x1

Power Cord – x1

Aux Cable – x1

Wall Mounting Kits – x1

User Manual – x1
