Specification

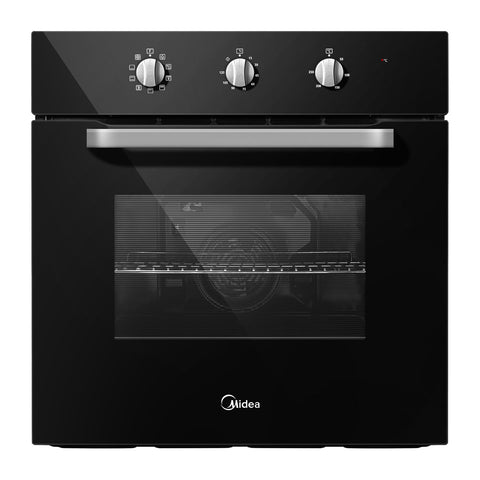

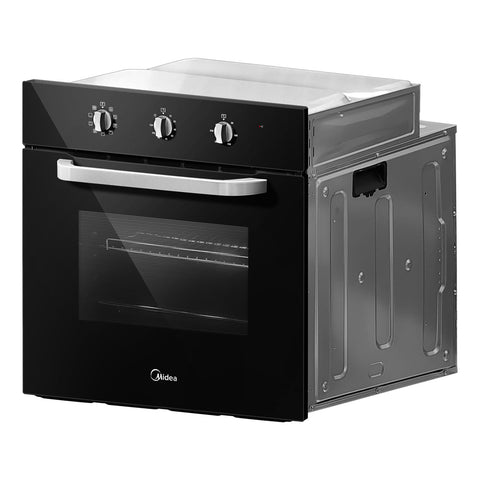

Midea – In-Built Oven with Timer Knob

Brand: Midea

Model: 65M90M1

Color: Black

Capacity: 65 Liter

Timer Range: 15 – 120min

Temperature Range: 50 - 250 °C

Rating Power: 3000W

Rating Voltage: 220-240V

Rating Frequency: 50-60Hz

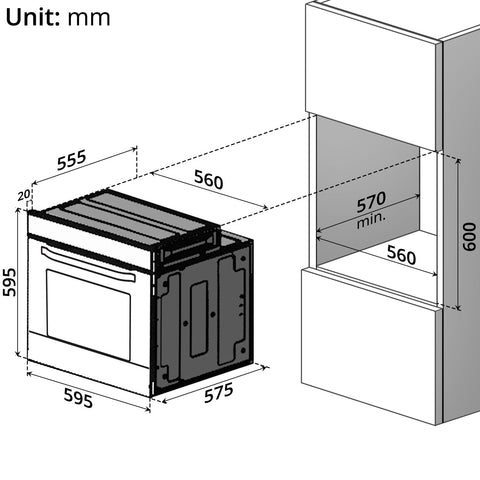

Overall Dimensions of (Product): W 595 x D 575 x H 595mm (All side of product’s dimensions are shown above)

Packing Size: 648 x 688 x 670mm

Gross Weight: 32kh

Net Weight: 29Kg

Warranty: 12 Months Warranty

Note: This oven doesn't include plug.

Click here for User Manual

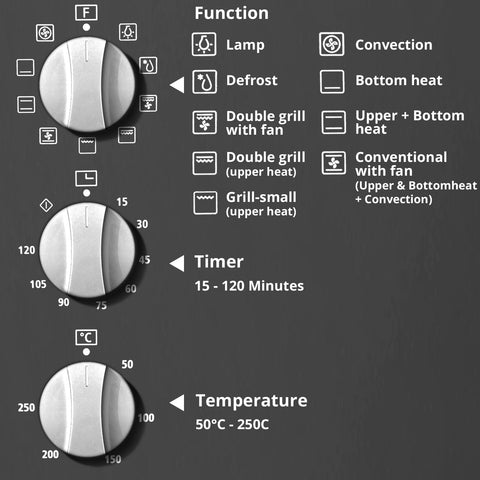

Symbol

Function Description

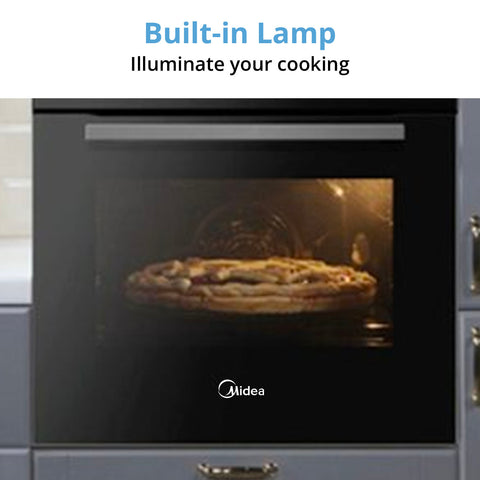

Oven Lamp

• Which enables the user to observe the progress of cooking without opening the door.
• Oven lamp will light for all cooking functions.

Defrost

• The Circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat).
• It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.

Double Grill with Fan (at the rear panel)

• The inner heating element and the outer heating element in the top of the oven are working with fan.
• It is suitable for grilling large amount of meat.

Double Grill

• The inner heating element and the outer heating element in the top of the oven are working.
• Suitable for grilling larger quantities.

Grill-small

• This cooking method is normal grilling, utilizing the inner part only of the top heating element, which directs heat downwards onto the food.

Convention with fan

• The top heating element and the bottom heating element are working with fan.
• The appliance to be cooked is evenly and quickly cooked all around.

Conventional cooking

• Heaters from the upper and the lower side uniformly heat the exposed food.
• Baking and roasting is possible only at single level.

Bottom Heater

• Heat is applied only by the bottom side of the oven.
• Use this option for browning the bottom side of the food.
• The function is suitable for slow cooking recipes or for warming up meals.

Convection

• Warm air heated by the rear heater is evenly distributed throughout the oven very fast by means of the fan.
• This results in a faster and more economical cooking process.
• The convection allows food to be cooked simultaneously on different shelves.
