Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

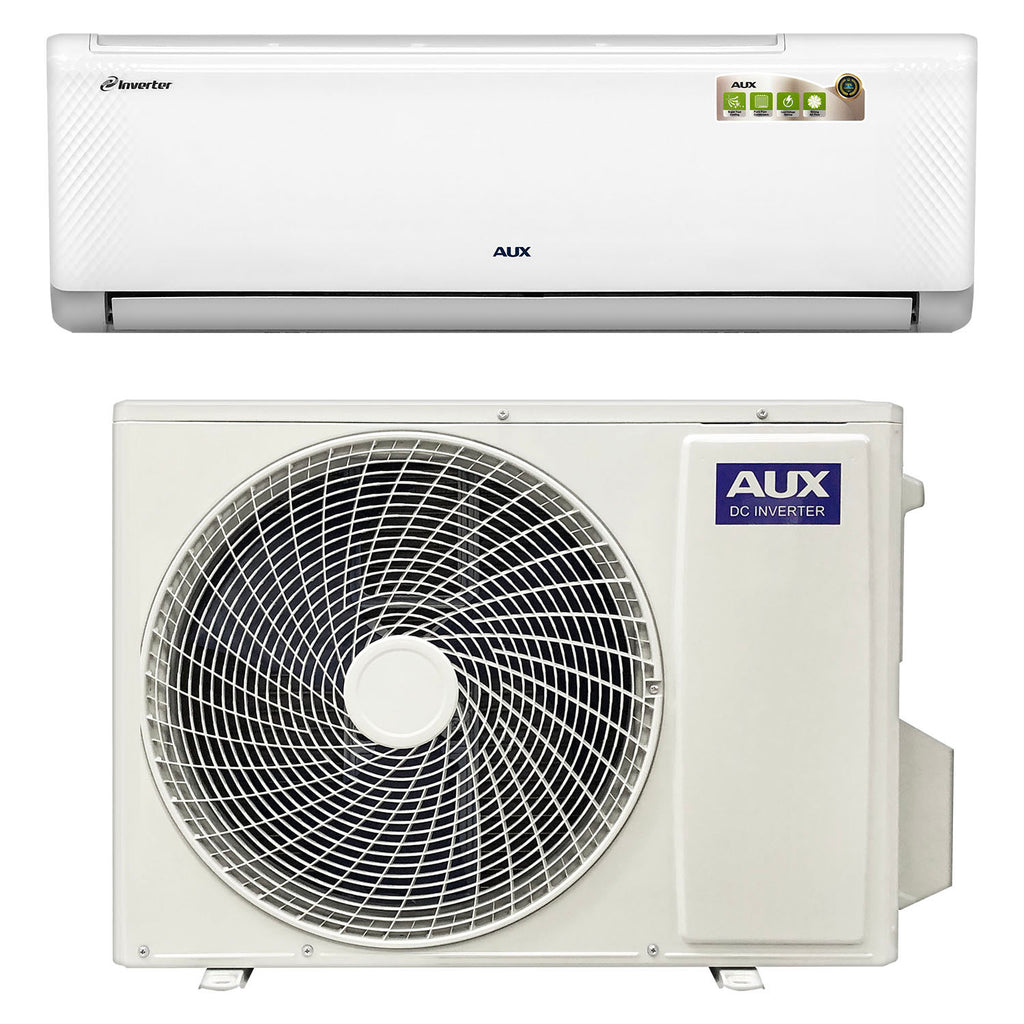

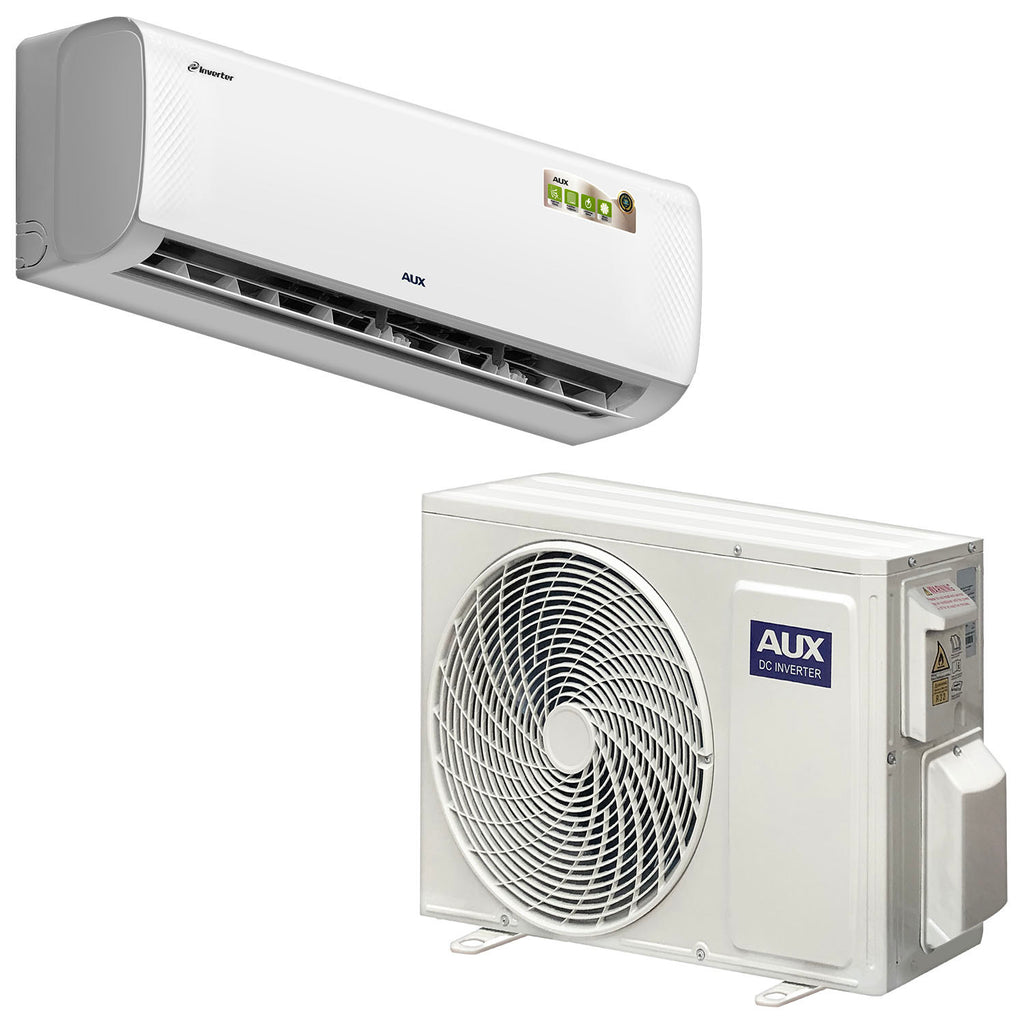

Aux – Air Conditioner (24000BTU)

Inverter – Wi-Fi Ready

Brand: Aux

Model: MASDC24QGR1

Capacity: 24000BTU

Color: White

Cooling:

• Rated Capacity: 7034W
• Rated Power Consumption: 2200W
• Rated Running Current: 10.3A (1.0 – 11.5)

Max. Input Power: 2800W

Max. Input Current: 16A

EER Cooling: 3.02 W/W

EU Energy Rating: A+++

Power Supply Source: 220-240V/50Hz

Refrigerant: R32

Refrigerant charged: 1120g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 1300 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

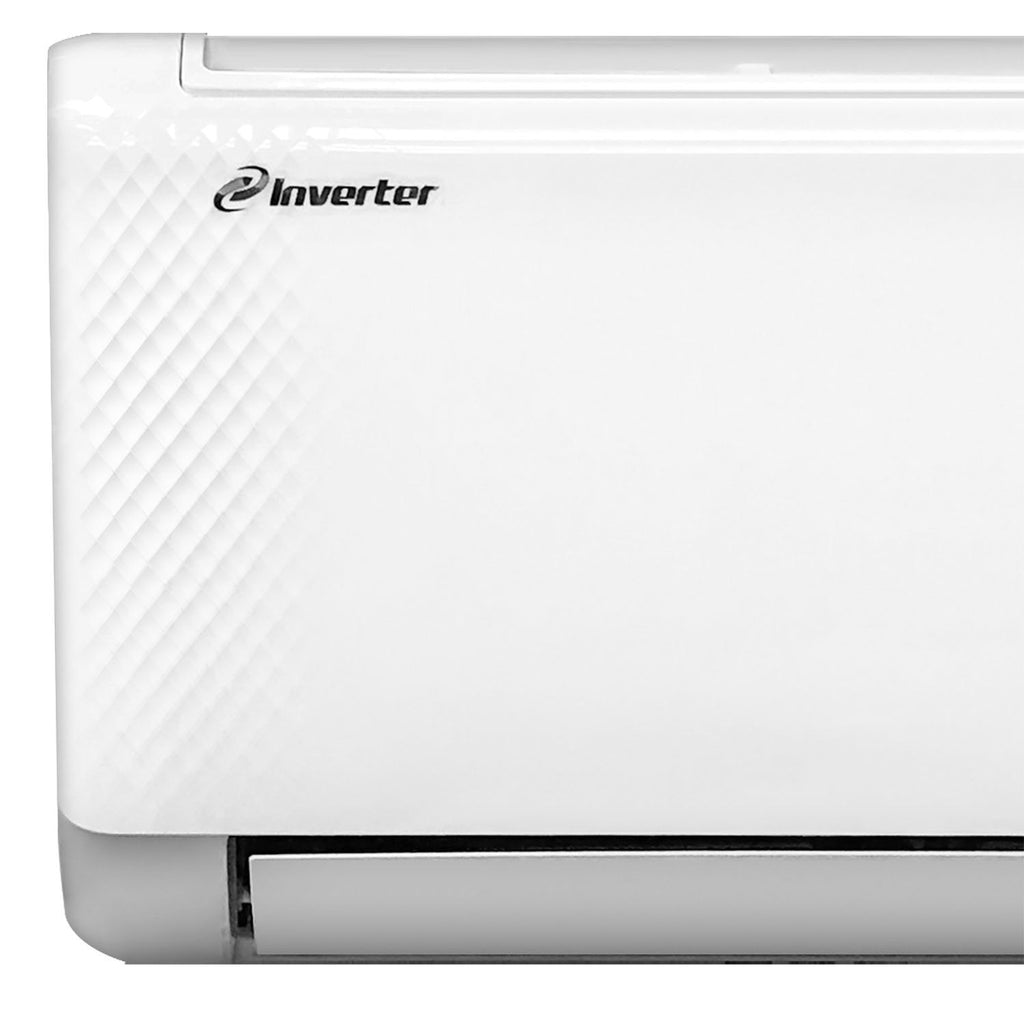

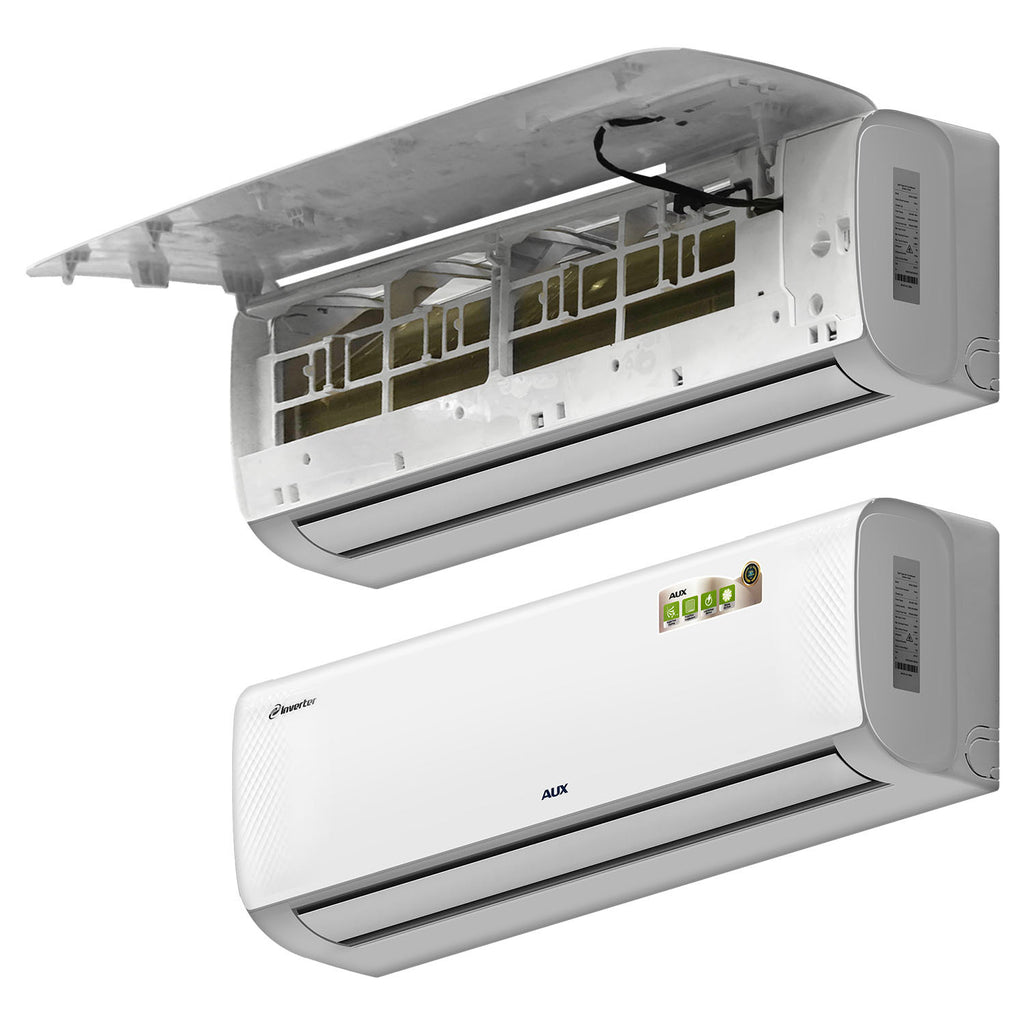

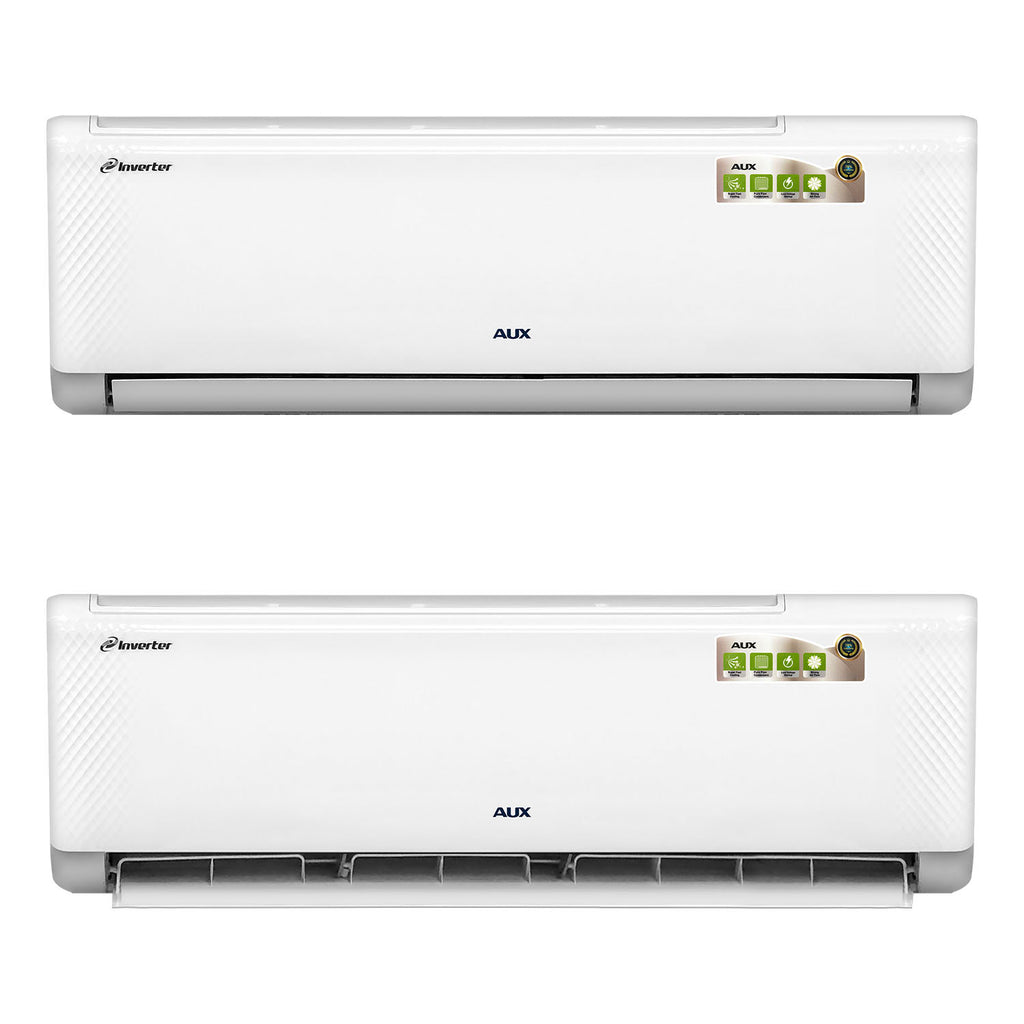

Indoor Unit:

Indoor Noise Level: 50 dB(A)

Evaporator:

• Rows: 2
• Tube pitch: 20.5
• Tube Material: screws inside
• Tube Thickness: 0.23mm
• Tube Quantity: 16
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin Thickness: 0.095mm
• Fin spacing: 1.4mm

Fan System:

• Type: Crossflow
• Material: AS

Connect pipe (length): 3m

Stop Valve:

• Liquid valve: Dg4
• Gas valve: Dg13

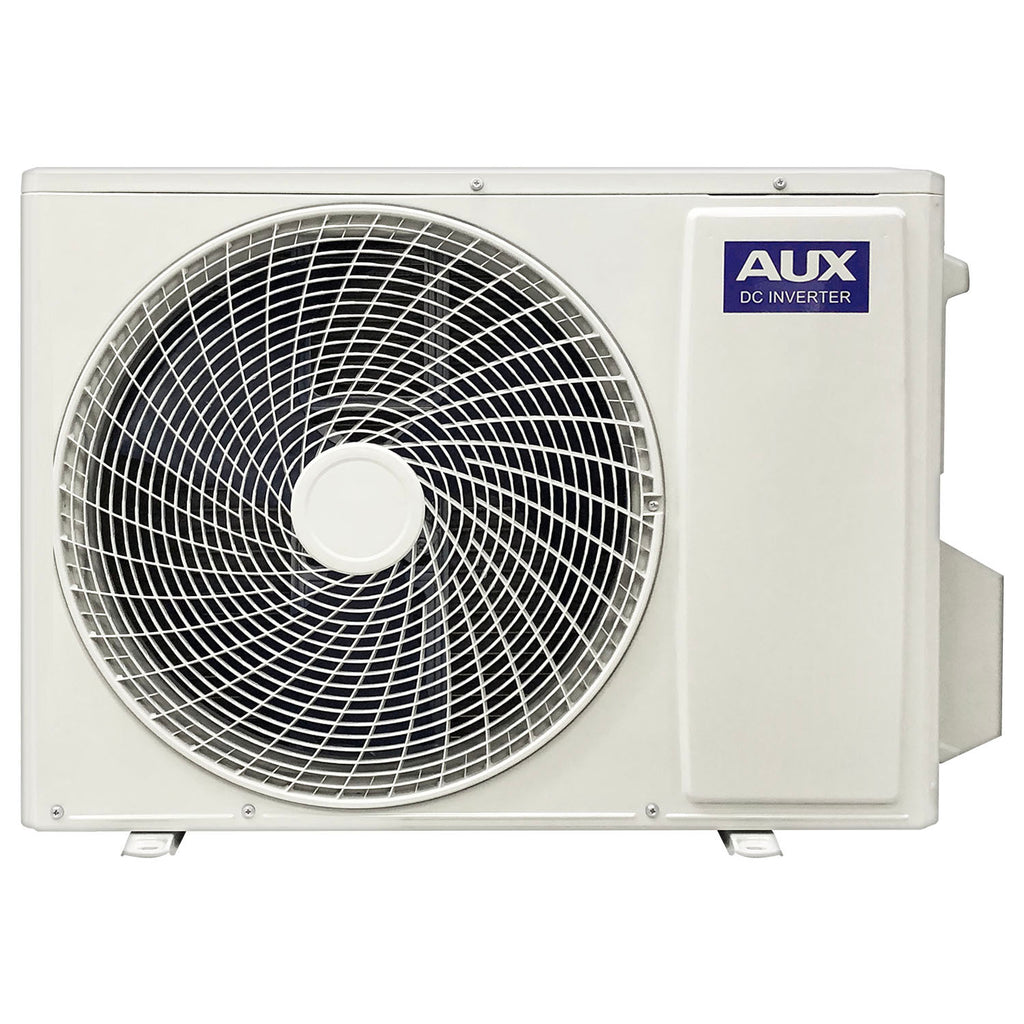

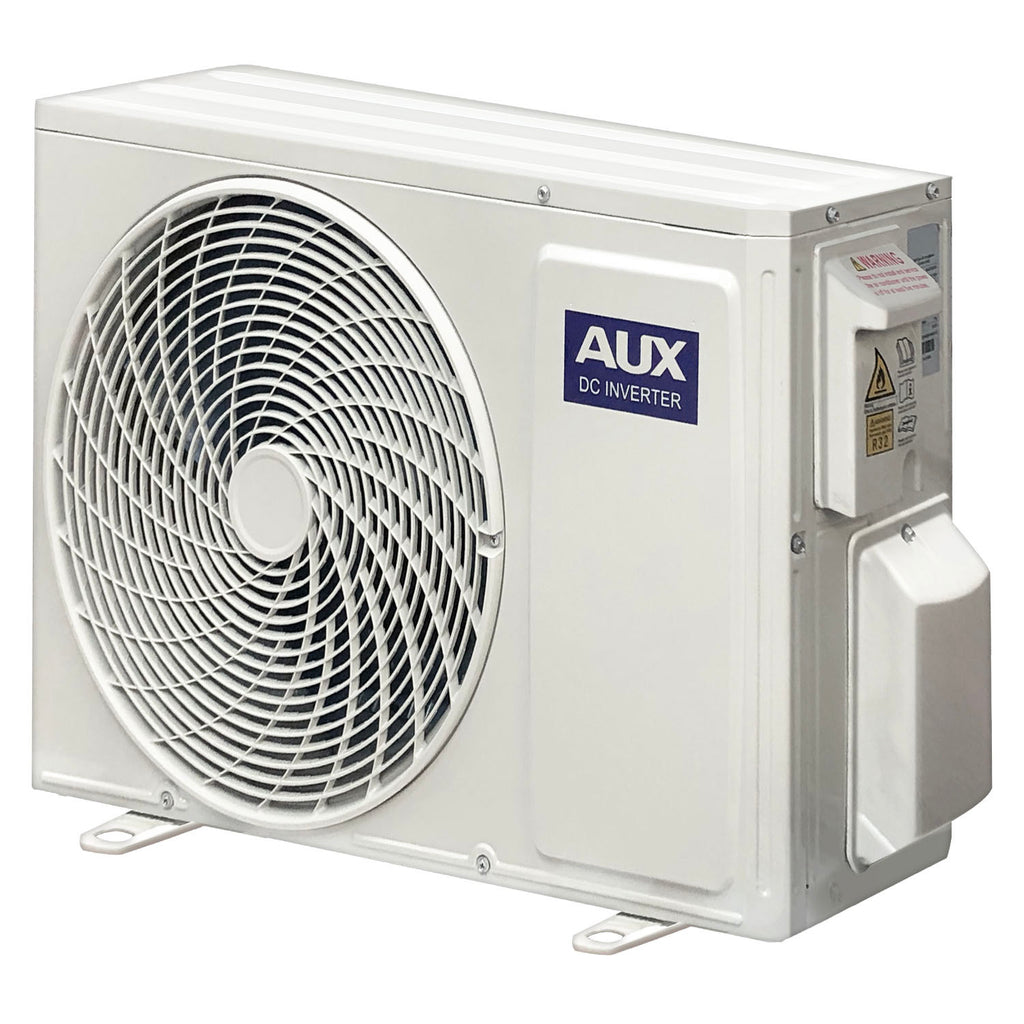

Outdoor Unit:

Outdoor Noise Level: 58 dB(A)

Type: Rotary

Fan:

• Type: Axis flow
• Vane Number: -
• Blade Material: AS

Motor: D-65-10L

Condenser:

• Row: 2
• Tube Material: screws inside
• Tube Quantity: 30
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin spacing: 1.3mm

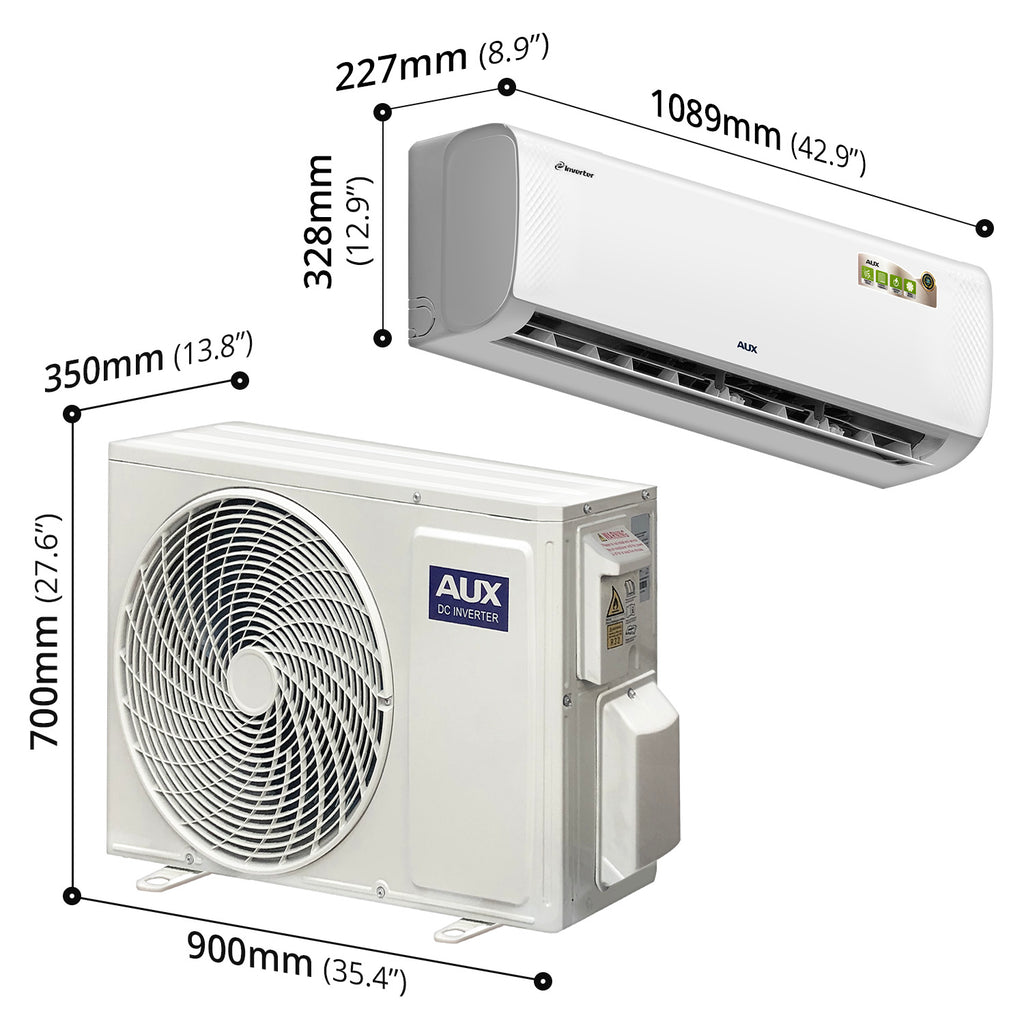

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• Product Dimension: 1089 x 227 x 328mm (42.9” x 8.9” x 12.9”)
• Packing Dimension: 1155 x 312 x 397mm (45.5” x 12.3” x 15.6”)
• Net Weight: 12.5kg
• Gross Weight: -

Outdoor Unit:

• Product Dimension: 900 x 350 x 700mm (35.4” x 13.8” x 27.6”)
• Packing Dimension: 1020 x 430 x 770mm (40.2” x 16.9” x 30.3”)
• Net Weight: 40kg
• Gross Weight: -

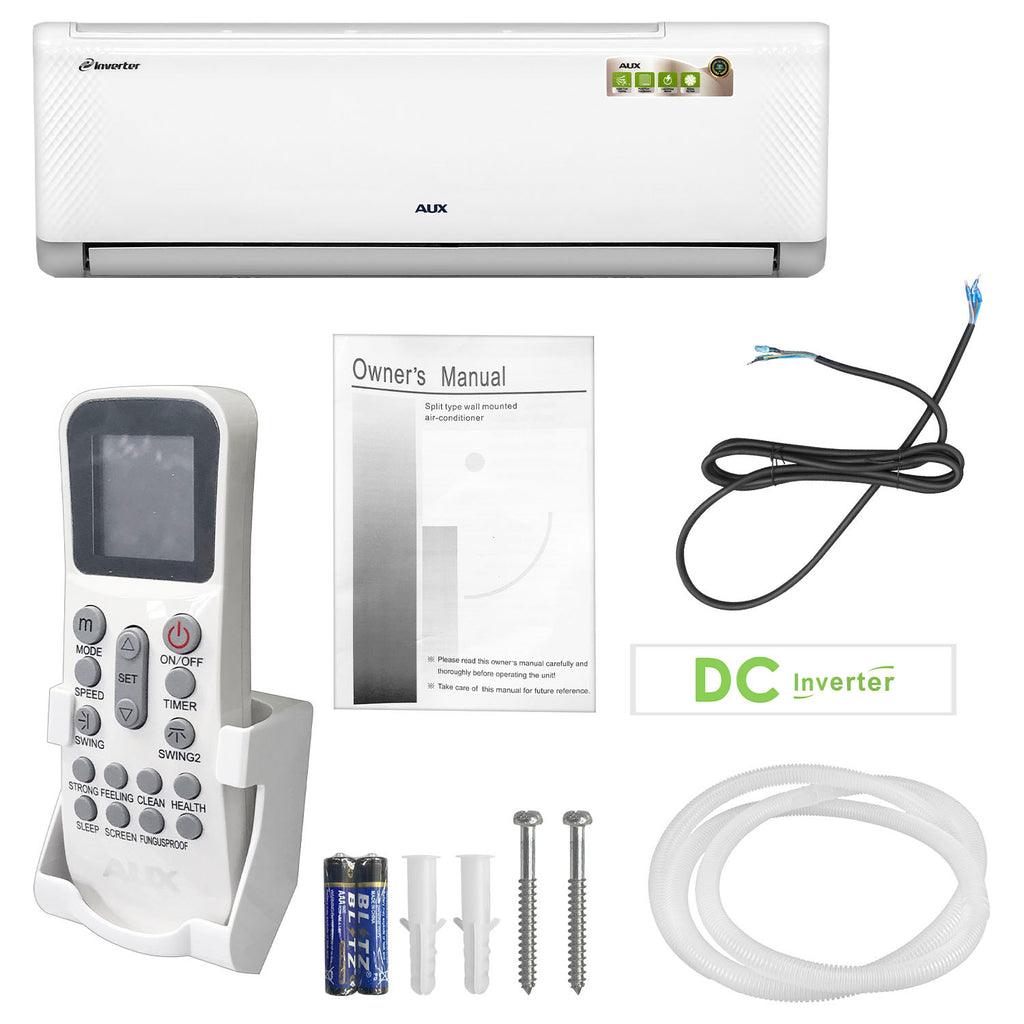

Packing Contents:

24k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

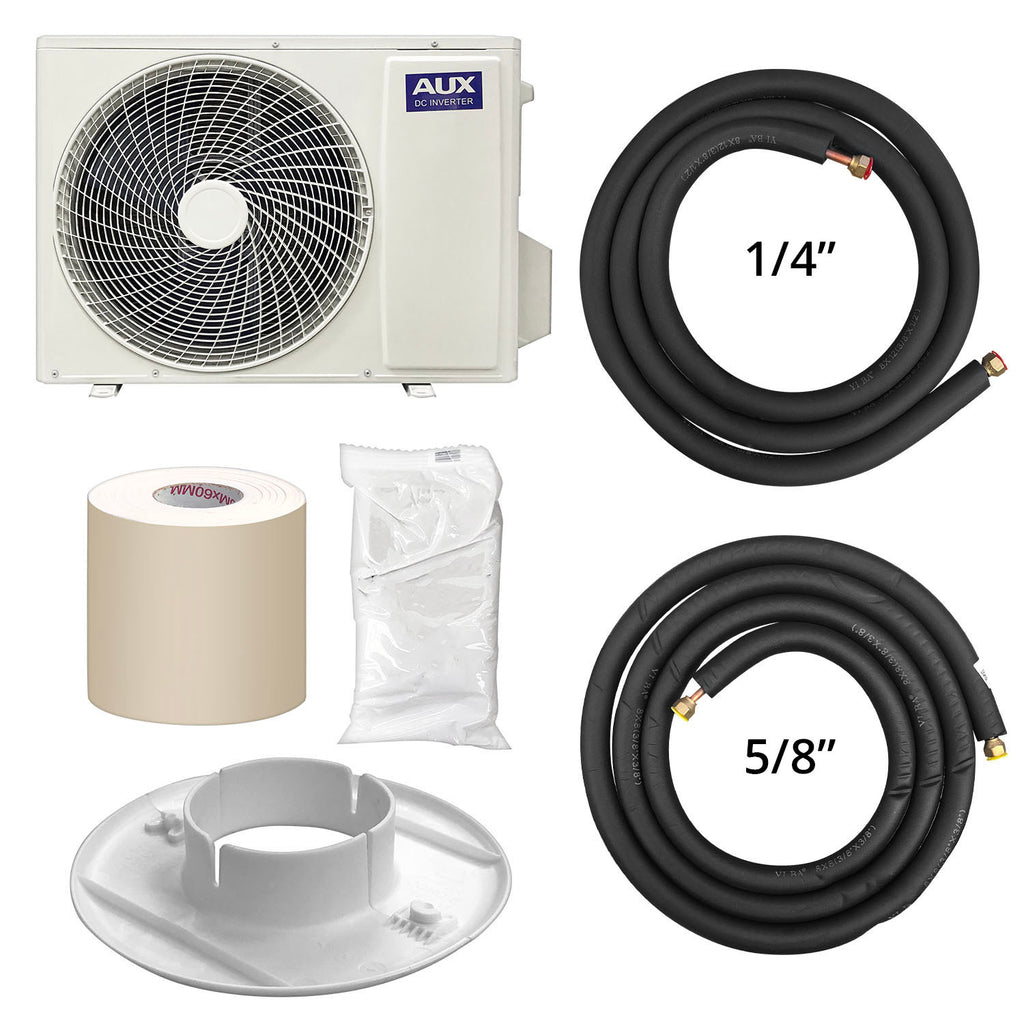

24k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 5/8” Insulated Copper Tube – x1
• Clay – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
